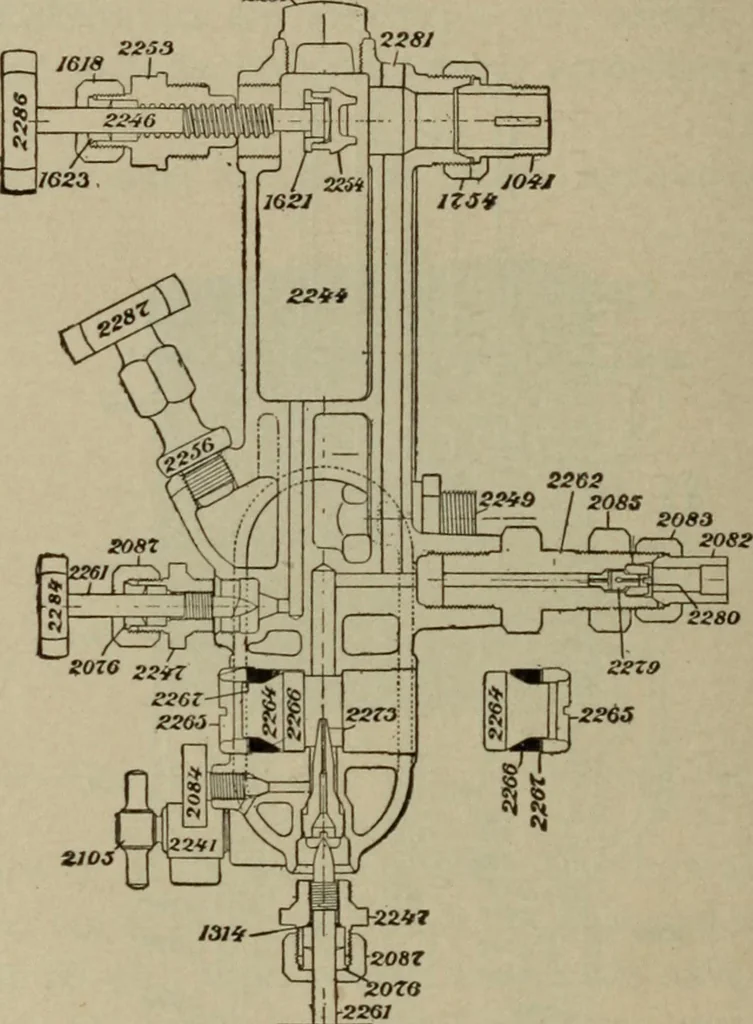

Fig. 19.—Detroit Lubricator, Front Sectional View. 301. The bowl of lubricator should be thoroughly blownout with steam pressure at frequent intervals so as toremove any scale or sediment that may gather in it. 98 LUBRICATOR DEFECTS 302. The most frequent cause of erratic action in thelubricator is… … Fig. 20.—Detroit Lubricator, Side Sectional View. valve in it as shown in Figs. 23 and 24; while the otherkind simply has a small hole about the size of a needledrilled through it. Should this hole become stopped up, LUBRICATOR DEFECTS 99 the lubricator will continue to feed until the tallow pipe…
