Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 382

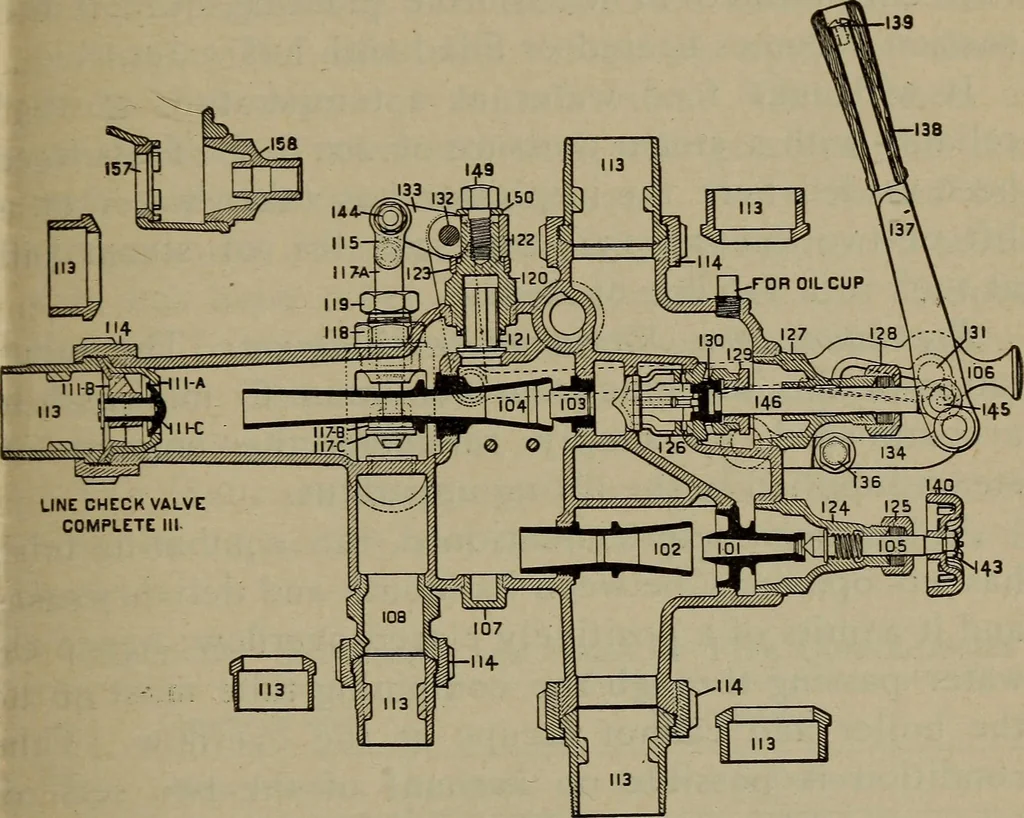

nd usedwas provided with a separate valve for opening andclosing the intermediate overflow in starting, and Ivalve for opening and closing the steam to the forcer1 INJECTORS, STEAM GAUGES, ETC. 377 [and the final overflow valve. While each was verysimple in construction and the operating of the… … Figure 174The Hancock Inspirator, Sectional Veew To accomplish this, the Hancock locomotive in-spirator, Fig. 173, operated by a single lever, wasevolved, and is made in different types to suit differentconnections. The present Hancock locomotive inspirator willwork successfully with pressures of…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
