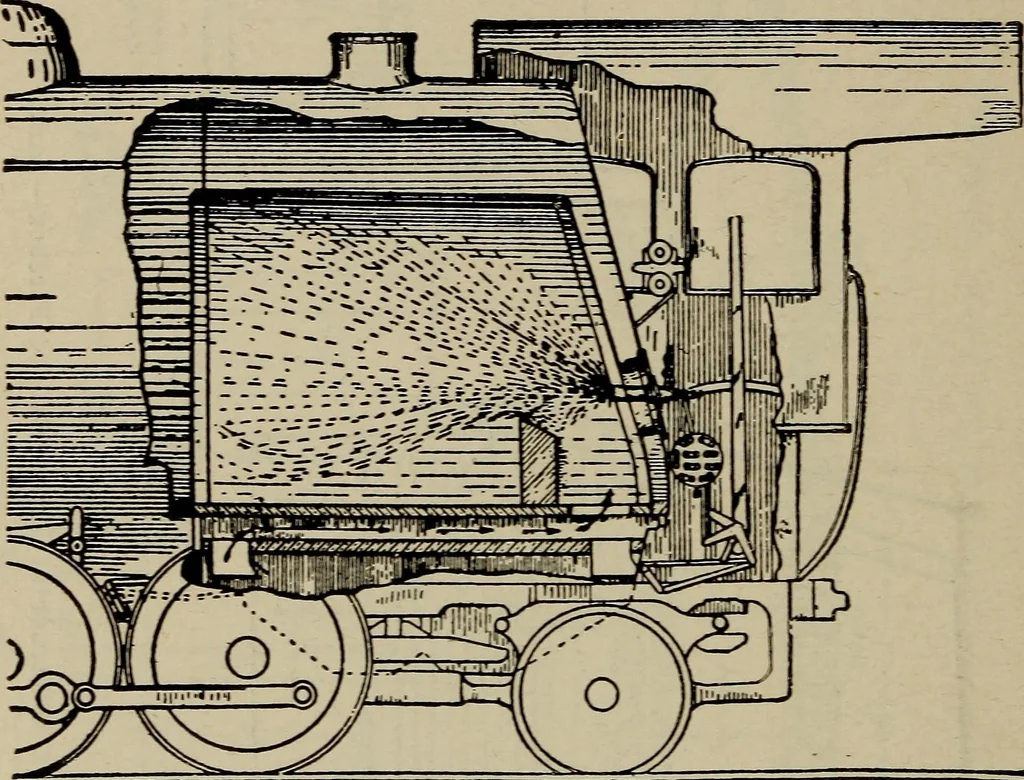

* •.» 111 • »: •a a H ao aj(4 a PQ CO<M <D bO 474* LOCOMOTIVE ENGINEERING With the Lassoe-Lovekin burner (Fig. 223k), a specialtype recently developed and tested on the Santa Fe CoastLines—all brickwork is done away with, except a cover-ing for the bottom of the ashpan. The oil is taken… … Figure 223k. Lassoe-Lovekin Oil-Burner.Dispenses with Brick Arch- Oil Supplied Under Pressure. The general arrangement of the firebox as adopted bythe Baldwin Locomotive Works, is illustrated in Fig. 223 1,The burner is placed below the mud ring at the backand on a line with the center of the…
