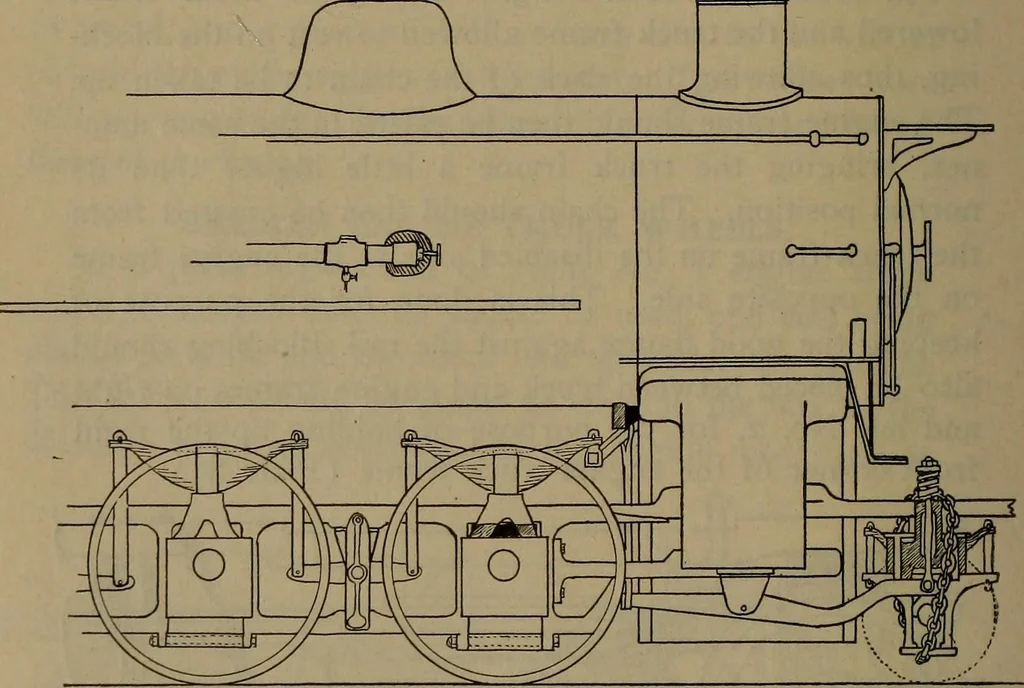

ualizer. Blocking should alsobe placed over the front driving boxes (Fig. I, Plate 82),after which the engine can proceed very slowly. If thepony truck cannot be removed, the engine frame shouldbe raised in the manner described, the pony truck frameshould be chained to the engine frame on both… … FIG. 1—PLATE 82. If an engine truck wheel or axle is broken on a con-solidated or ten-wheel engine, the engine truck frame canbe chained to the main frame, as described, but insteadof using a fulcrum under the pilot beam, the forward BREAKDOWNS. 203 drivers should be run up on wedges, which would…
