Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 732

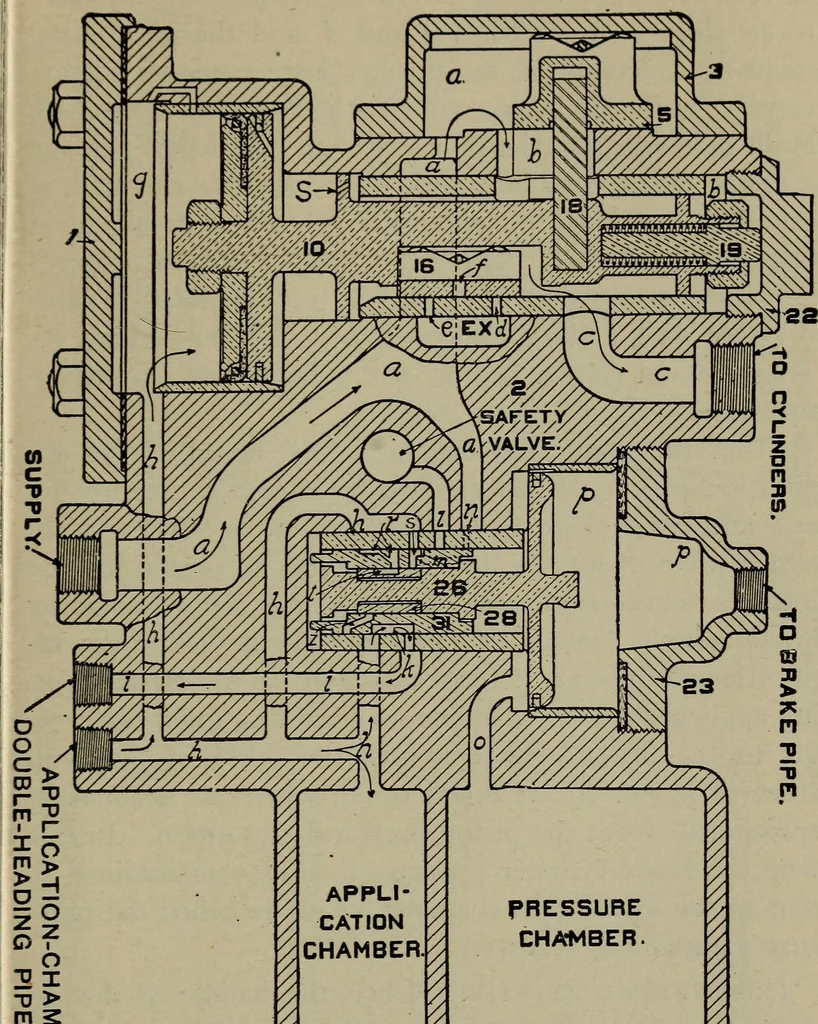

zo m O z I oI> oam 3D 2 APPLI-CATION CHAMBER % v PRESSURECHAMBER 1 // m FIG. 299. RELEASE, AUTOMATIC OR INDEPENDENT ET BRAKE EQUIPMENT 679 … 2 v / y 2 m FIG. 300. INDEPENDENT APPLICATION 680 LOCOMOTIVE ENGINEERING movement of application piston 10 causes exhaust valve16 to close exhaust ports e and d, and the graduatingstem 19 to compress its spring; also open applicationvalve 5 by its connection with the piston stem by pin 18.Main…
