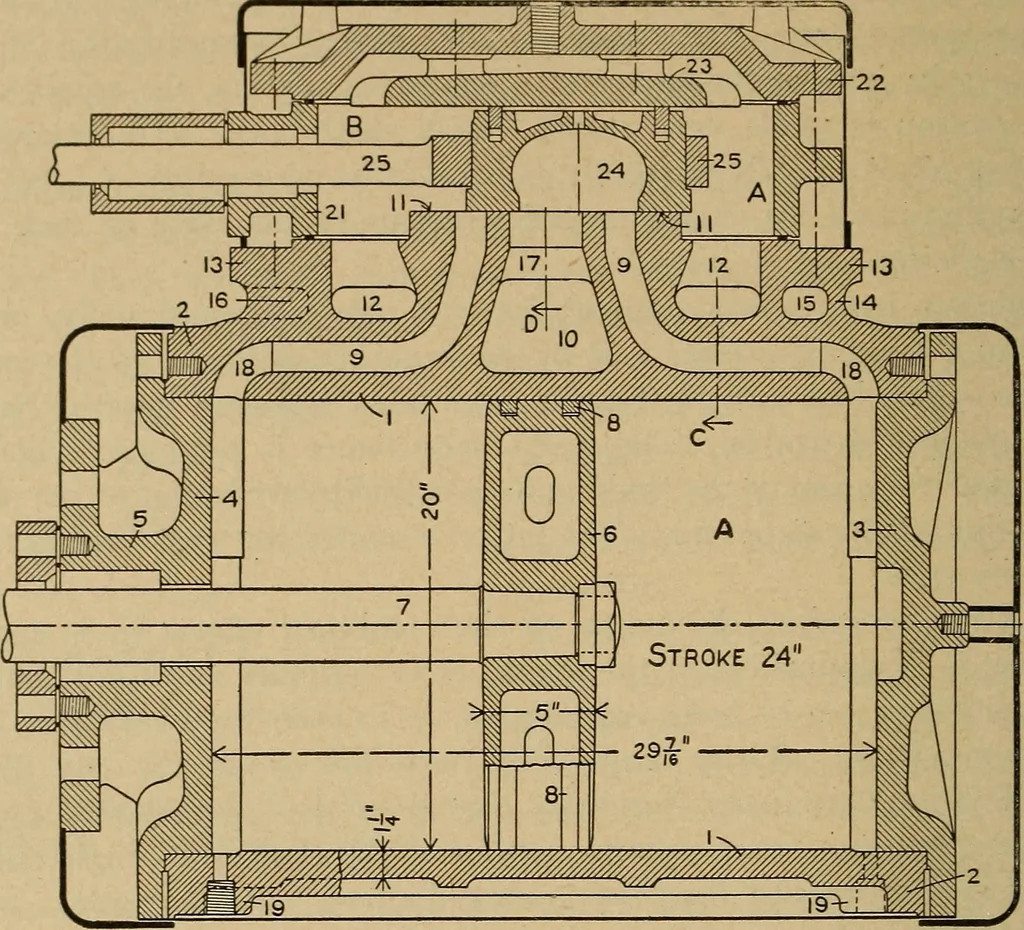

cjdinder; at the ends itis counterbored a little larger (from | in. to | in. on the diameter).This is done partly to facilitate reboring when worn, partly in orderthat the piston may not wear the rubbing surface to a shoulder at theend of its stroke: with the latter intent, the outer edge of the… … Fig. 200. — Lengthwise Section of Locomotive Cylinder, with short, wide, balancedslide valve and long ports. Scale 1 to 12. 1. Cylinder body or barrel. 2. Cylinder flanges. 3. Front cylinder head. 4. Back cylinder head. 5. Stuffing box. 6. Piston. 7. Piston rod. 8. Packing rings. 9. Steam ports.10.…
