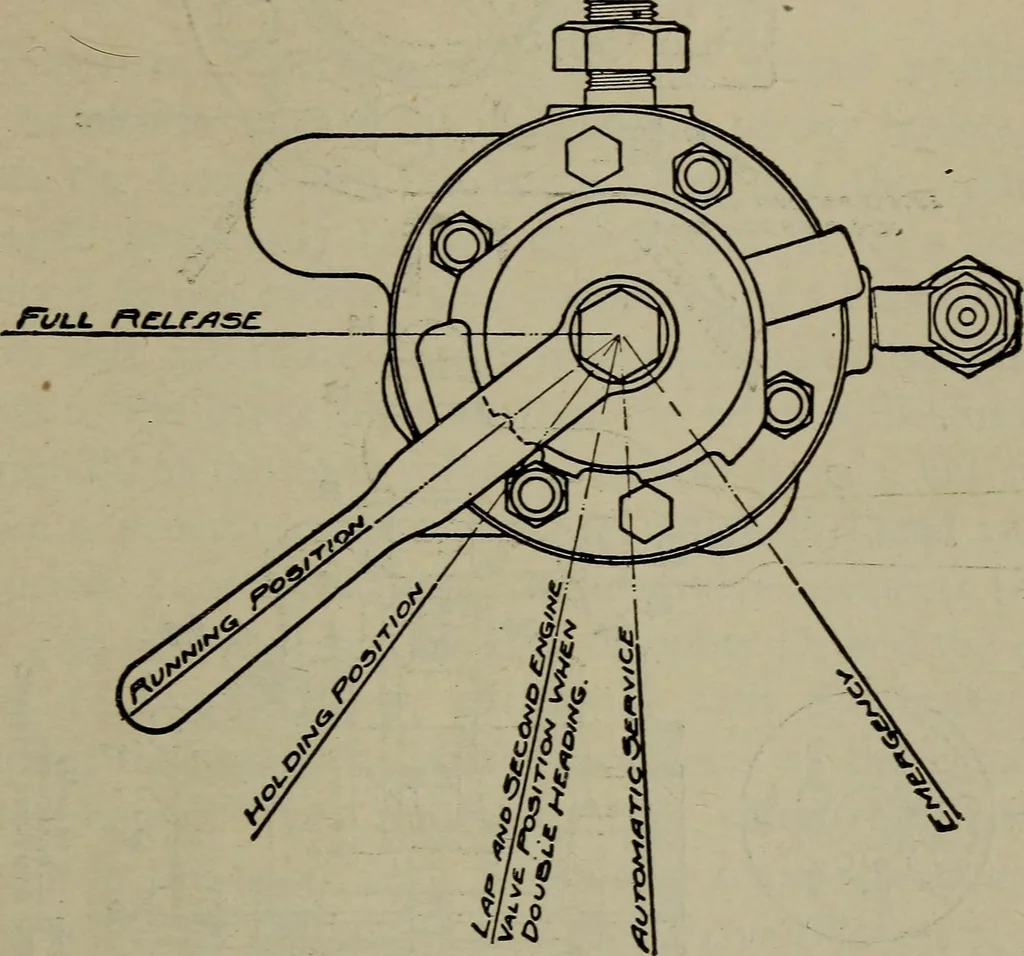

voir Pipe; GO—To Gov-ernor- DH—Double Heading Pipe; EX—Exhaust; AC—Appli-cation-Chamber Pipe; BP-Brake Pipe; GA-Duplex AirGauge; ER—Equalizing- Reservoir ET BRAKE EQUIPMENT 699 Fig. 313 shows two views of this valve similar tothose of Fig. 311, with the addition of a plan or top viewof the rotary… … FIG. 312 face; 0 is the exhaust cavity; x is a port in the face ofthe valve connecting with 0; h is a port in the face whichpasses over cavity k and connects with exhaust cavity o;n is a groove in the face. Referring to the ports in therotary-valve seat, d leads to the feed-valve pipe; b and clead…
