Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 770

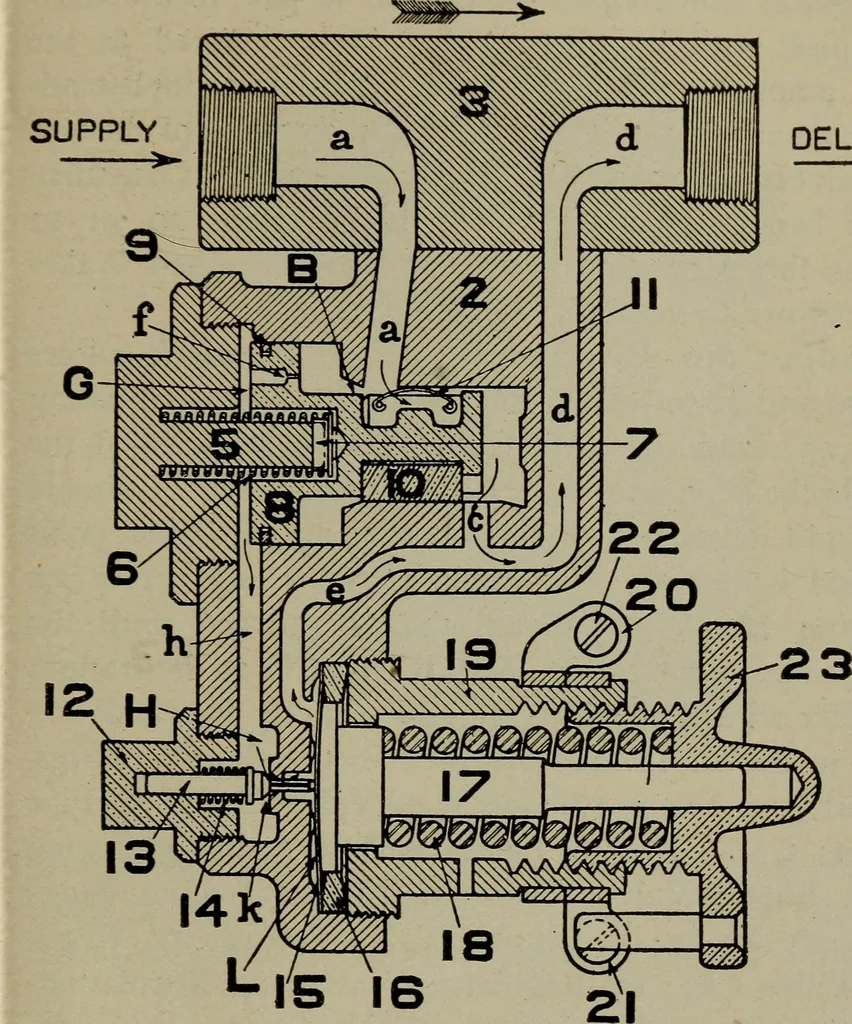

DELIVERY I? H FIG. 318. DIAGRAM OF FEED VALVE, CLOSED any further flow of air from chamber G. As the airwhich continues to flow through port / will quickly equal-ize the pressure on both sides of piston 8, spring 6 will ET BRAKE EQUIPMENT 713 force the piston to the right, moving supply valve 10… … DELIVERY >. 15 16 FIG. 319. DIAGRAM OP FEED VALVE, OPEN When the pressure in the feed-valve pipe falls belowthat for which the valve is adjusted, regulating spring 18will force the diaphragm forward, unseat regulating valve 714 LOCOMOTIVE ENGINEERING 13, and permit the accumulated air pressure…
Locomotives
