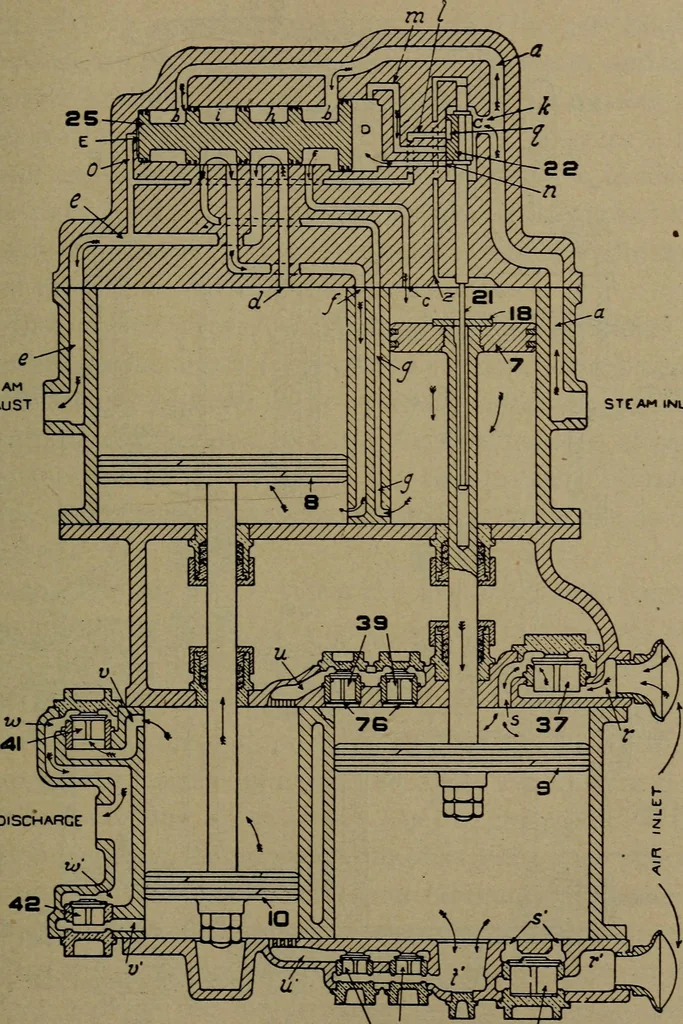

and passage/ into the lower end of the low-pressure steam cylinder,forcing piston 8 upward. The steam on top of piston8 is exhausted to the atmosphere through passage d,cavity h, and passage E. The high-pressure steam piston in completing its down-ward stroke, the reversing plate 18 engages the… … 40 38 Fig. 40.—8J-Inch Cross Compound Compressor, Up Stroke. 166 CROSS COMPOUND COMPRESSOR STEAM fSS) air discharge STEAM INLET
