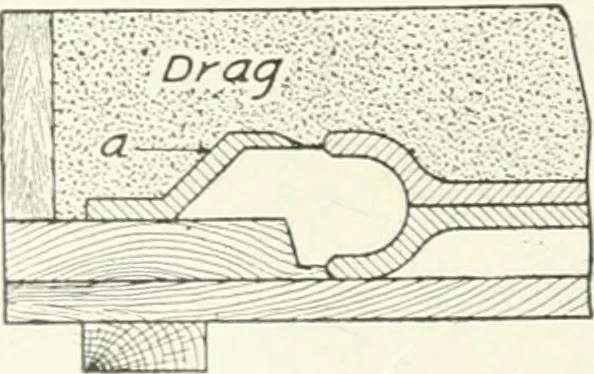

ter than the flange of the sheave, and having a section shown in a, Fig. 40. The ring is set in position in the middle of the inverted drag, the pattern is held central inside of the ring by the recess in the mold board. Pack the drag, roll over, and remove the mold board. Tuck the green core all… … Fig. 46. 190 FOUNDRY WORK 37 of the drag pattern, allowing it to be removed. Replace the ring, dose the cf)pe, and the mold is complete. See half-section, Fig. 47. In larger work, where the parting planes are farther apart, this
