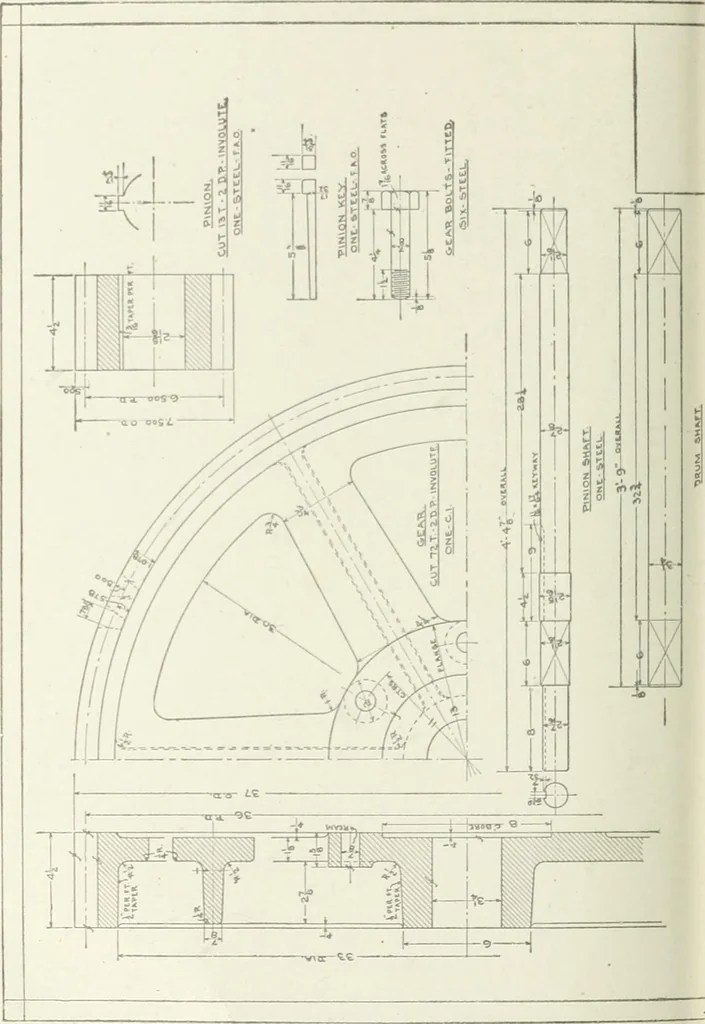

or shear, crushing in the hub, and crushing in the shaft,but the hubs are so long that it is at once evident without fio-urintr o no that the stress would run very low in both cases. Gears. Fig. 12. The analysis of the forces acting on thegears has been given on page 28, 4,000 pounds being taken at… … Fig. 12. MACHINE DESIGN 45 equally between all the arms, and that each acts as a beam loaded at the end with its proportion of the tooth load. Before we can determine the length of these arms, however, we must fix upon the size of the flange which is to carry the driving bolts. This is taken at 13…
