Machine drawing, a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1920)
Griffin, Charles Lewis, 1867- [from old catalog], Adams, Charles Clyde, 1882- [from old catalog] joint author · Chicago, American technical society · leaf 198

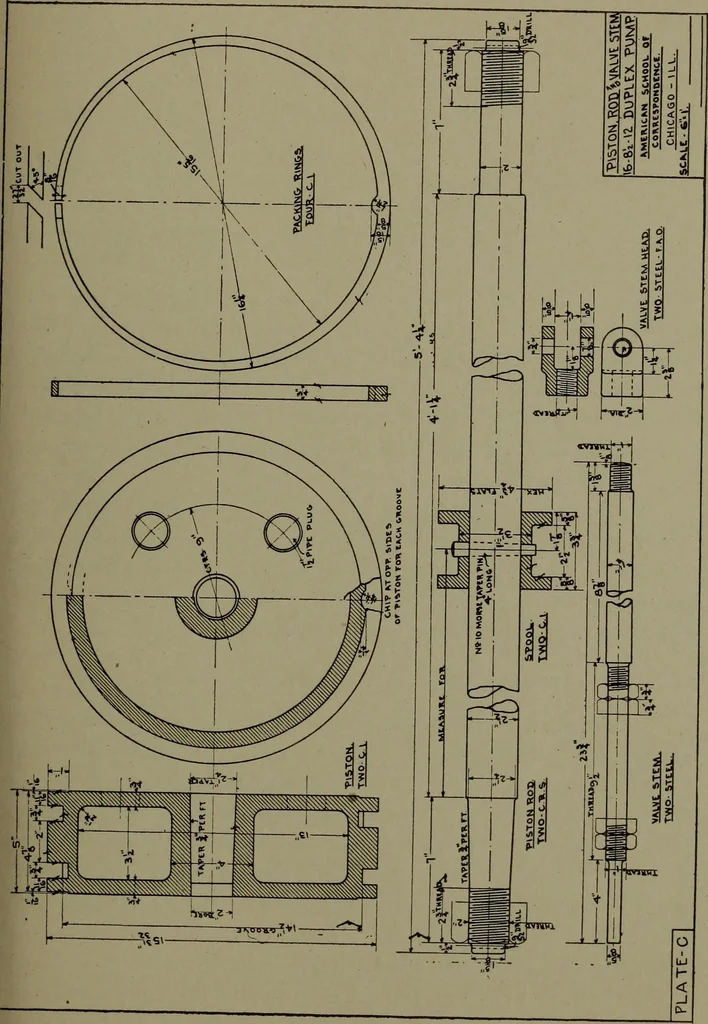

. I castiron. S. C steel casting. Bz bronze. C. R. S cold rolled steel. T. S tool steel. O. H. S open hearth steel. W. I wrought iron, PLATE C. PISTON ROD AND VALVE STEM Specifications. The piston is of the one-piece box type, withsprung-in rings. The width is reduced to 4J inches at the outside,so… … 186 MACHINE DRAWING by a nut, and the nut is checked by a J-irich split pin. The packingrings are prevented from slipping round the piston by lugs fittingloosely in chipped recesses in the groove. These being at oppositesides for each groove, the leakage of steam through the split in thering is…
Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
