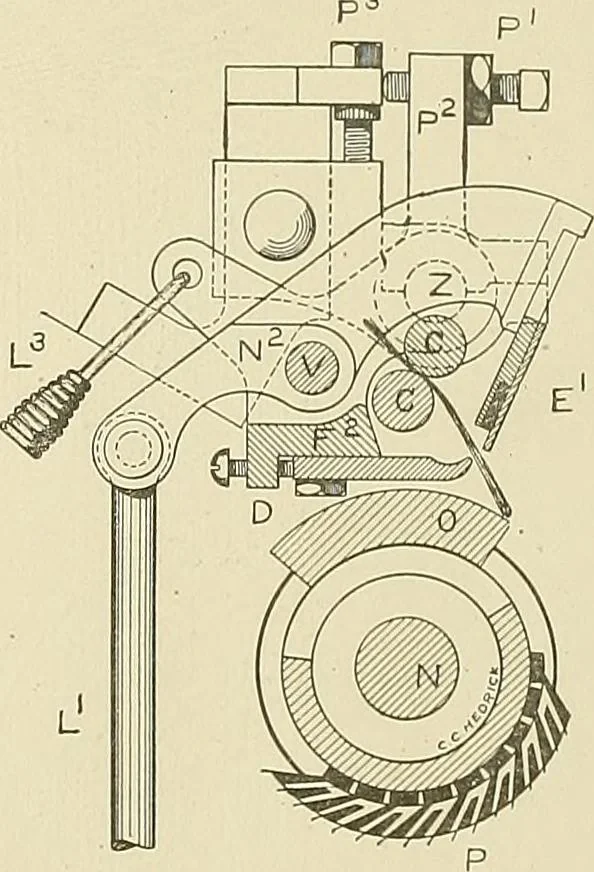

^, and thenipper cam lever, J^. The last named cariies a roll, -T, that ransin a groove, T^, in the face of the nipper cam. The nipper cam lever, J^, is made in two j)arts whicji eiiablesa very fine adjustment to be made by means of the screws, T* andT^. The part carrying the screws is keyed to the… … COTTON SPINNING. 141 rods, L^. The nipper cam makes one revolution to one of tliecylinder and, at each Ievolutioii, the opening and closing ofthe nipper and cushion plate takes place which corresponds to tliemovements of the cylinder. To follow these movements, Figs. 117, 118, 119 and 120have been…
