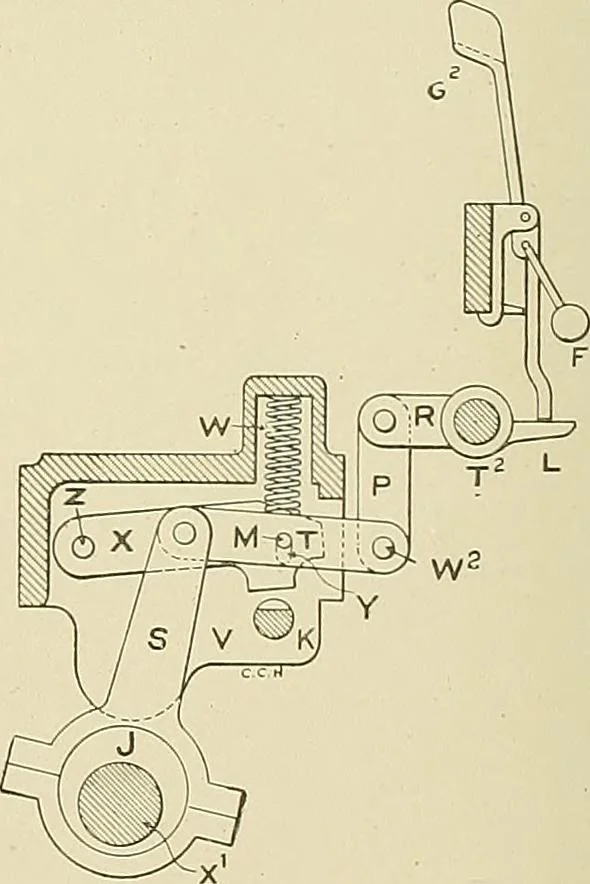

with the shipper rod, slidesalong until a slot cut in its uppersurface is beneath one end ofthe lever, X. When this happens,X, which is pivoted at Z, dropsinto the slot and holds the rodstationary until X is lifted out ofthe slot. If a sliver breaks or runs out, the spoon assumes a vertical… … Pig. 178. Back Stop Motion. COTTON SPINNING 211 ill the slot of the stand, to the pin, W, in the lower end of the link, P.The spring, W, yields and allows the eccentric to lift the pin, M, andwith it the lever, X, withdrawing X from the slot in the spring rod,which is released and the belt is…
