Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 177

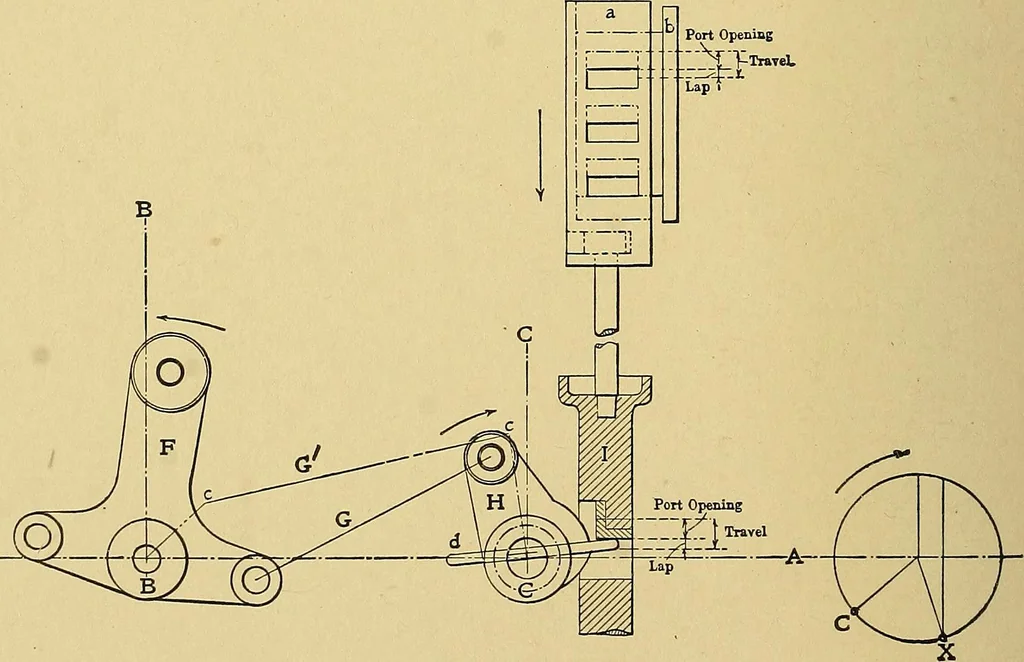

and eccentric will now travel together. The relative positions of theexhaust pins are shown at c c. Fig. 171 shows the valve fully, opened, having reached the full height ,-^- … FIG. 172. THE WRIGHT STEAM ENGINE 167 of its travel. The eccentric and wrist plate are also at the extremes oftheir travels, and as the plate d is so far extended under the valve yokethat it will not disengage, the valve will not close until the crank andeccentric have so far advanced in their…
Steam-engines
