Cyclopedia of textile work; a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School of Correspondence · Chicago, American School of Correspondence · leaf 71

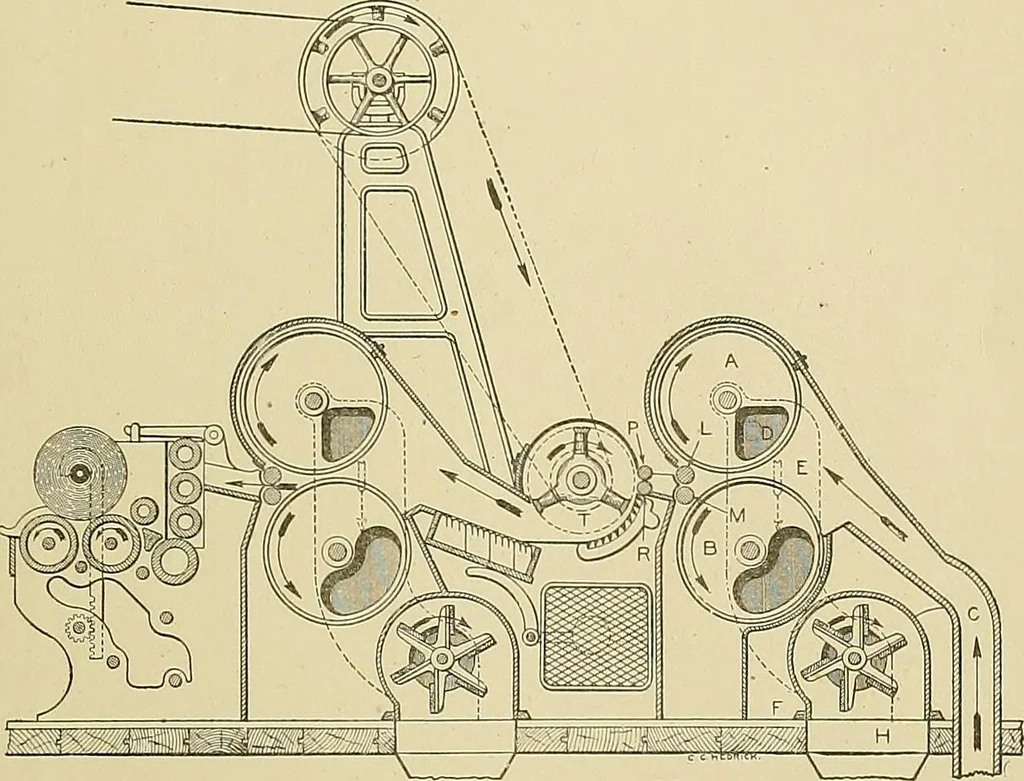

gainst which it strikes, cans- COTTON SPINNING. 25 ing the dirt to be shaken out and to fall between them into thepockets. The bottom, E, of these pockets is made in one piece, extend-ing the whole length of the trunk, and is held up against theunder side of them by levers G, which are fastened at… … Fig. 16. Section of Breaker Picker, with Screen Section. opened for cleaning. The handle is swung down into the positionshown, which draws the bottom away from tlie under side of thepockets. The refuse slides down into a box, or basket, placedbeneath the lower end of the trunk. Sometimes the trunk…
