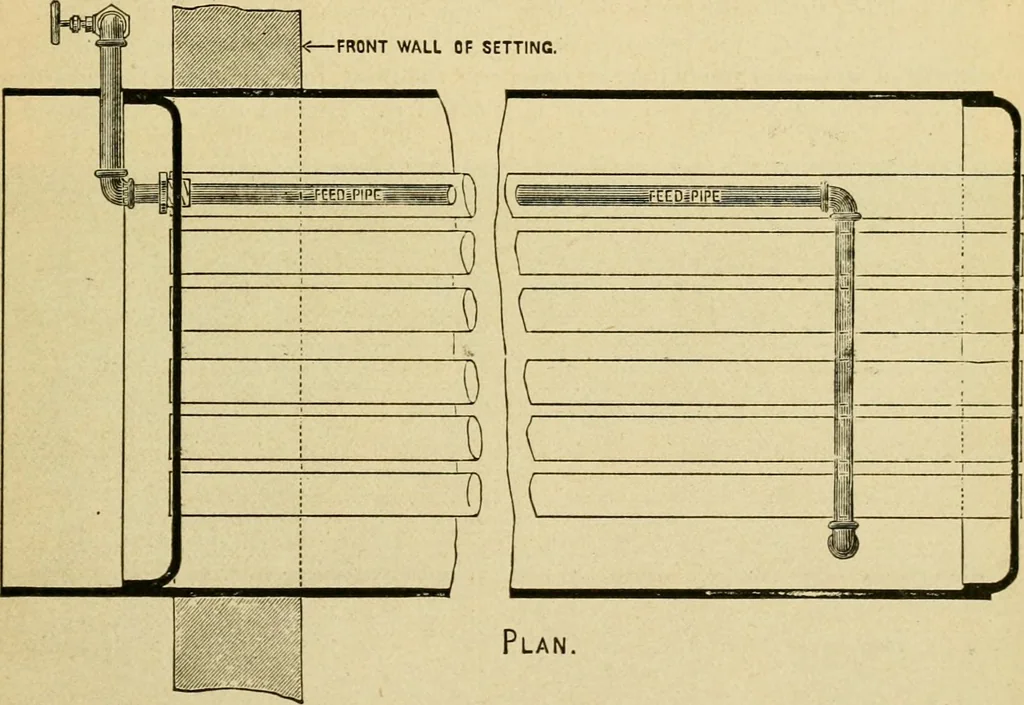

J Wkt Xocomottoe. PUBLISHED BY THE HARTFORD STEAM BOILER INSPECTION AND INSURANCE COMPANY New Series—Vol. IV. HARTFORD, CONN., MAY, 1883. No. ,5 The Proper Construction of Feed-Pipes. In our issue of last niontli vve commonted briefly upon the injuriou.* efiect of Acdinu;cold water directly into ft… … Fig. 1. Fig. 1 is a horizontal section through the shell of an horizontal tubular boiler witha projecting front, showing the essential features of the constiuetion. The pipe enters thefnmt connection tlirough the side of the projecting portion of the shell, then turns andenters the boiler through…
