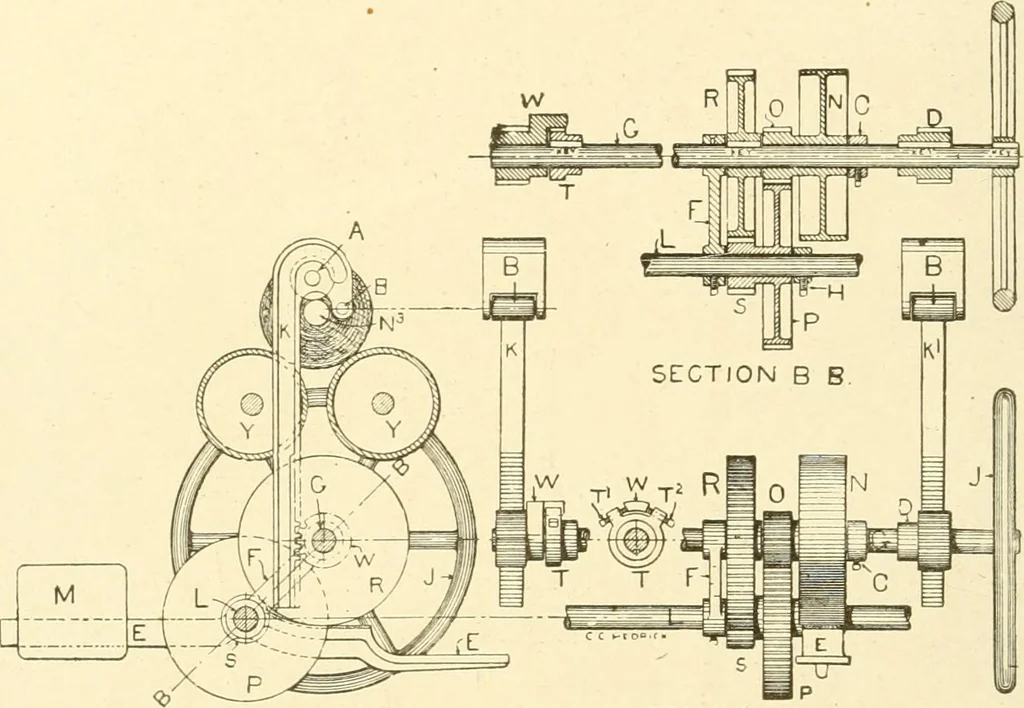

, N, bythe gears, S and P. These gears turn loose on the shaft, L, andare held in position by the collars, F and 11. The break pulley,N, is free to turn on the rack shaft and is held in position by thecollar, C. Loose upon the shaft, L, is tlie break lever, E, whichbears against the under side of… … SiDE elevatioin; Fitr. 43. Friction Let-oft. FRONT ELtV/^TtON iact with it by the weight, JNI. The face of the break lever whichbears against the pulley is lined with leather. As the lap increases in diameter, it draws up on the rackswhich are kept from rising by the friction of the break lever…
