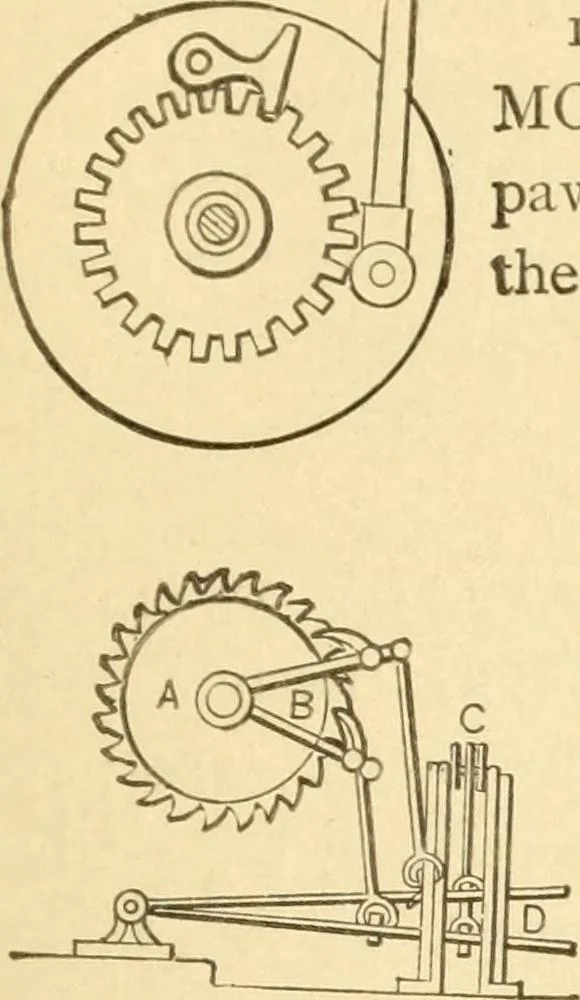

looi. DOUBLE-PAWL RATCHETWHEEL.— The lever lifts the pawls, one ofwhich moves the ratchet wheel at up-stroke byone pawl, and again at the down-stroke by theother pawl. 1002. INTERMITTENT ROTARYMOTION, from a reciprocating rod and twopawls, acting on a ratchet-faced wheel. ArmsC, C are loose on… … 1003. INTERMITTENT CIRCULARMOTION.—Reversible by throwing over the doublepawl. Operated by a reciprocating rod attached tothe disc carrying the pawl. 1004. RATCHET INTERMITTENTMOTION, by the operation of treadles. Pawllevers and pawls are operated through con-necting rods to levers or treadles, the…
