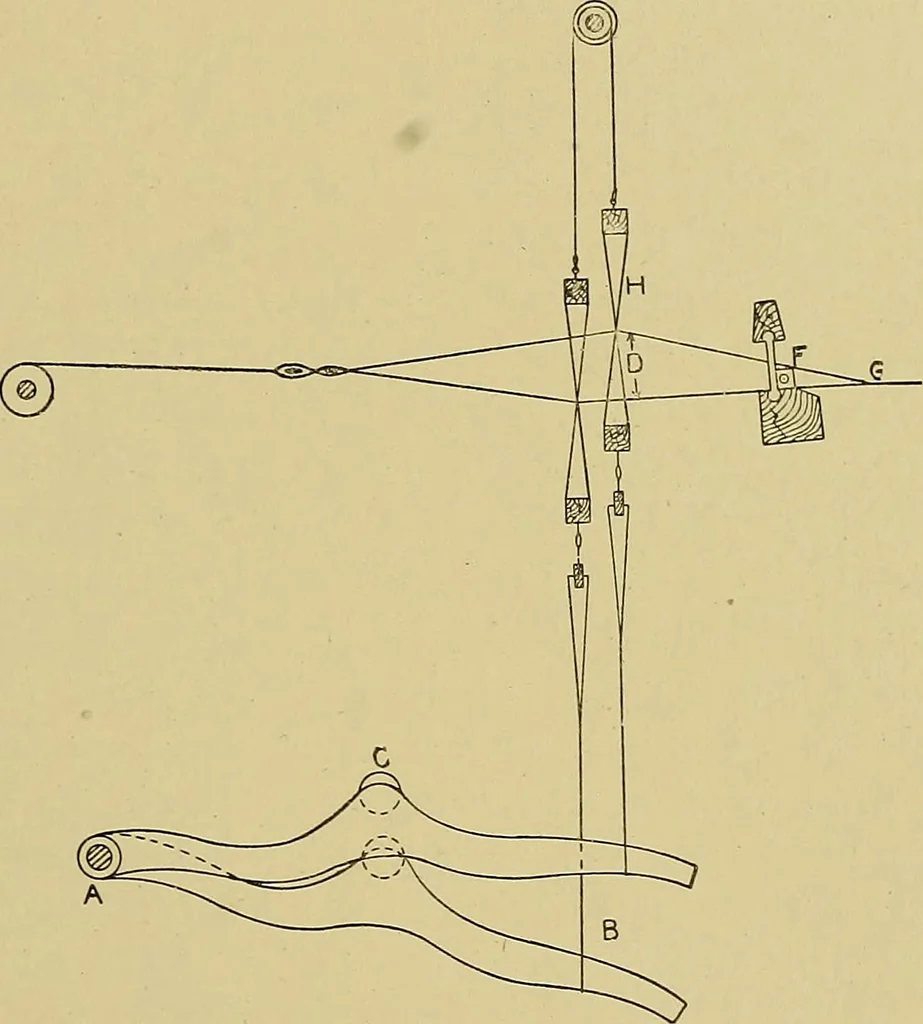

a loss of lift when the harness is raised, and a loss indepression. To overcome these losses it is common to tighten theconnections; but no matter how much they are tightened, there isnever as good a shed as when the bowl and stud are in good condi-tion. rieasurements of Shed. Before constructing a… … Fig. 59. Measurement of Shed. Length of treadle from pin A to point of connection of harnessstrap B, is 24 inches. Pin A to treadle bowl C, 15 inches ; requiredlift of the harness so as to give that space in the harness at D, 4inches. Eule: To find length of stroke, multiply the distance betweenthe…
