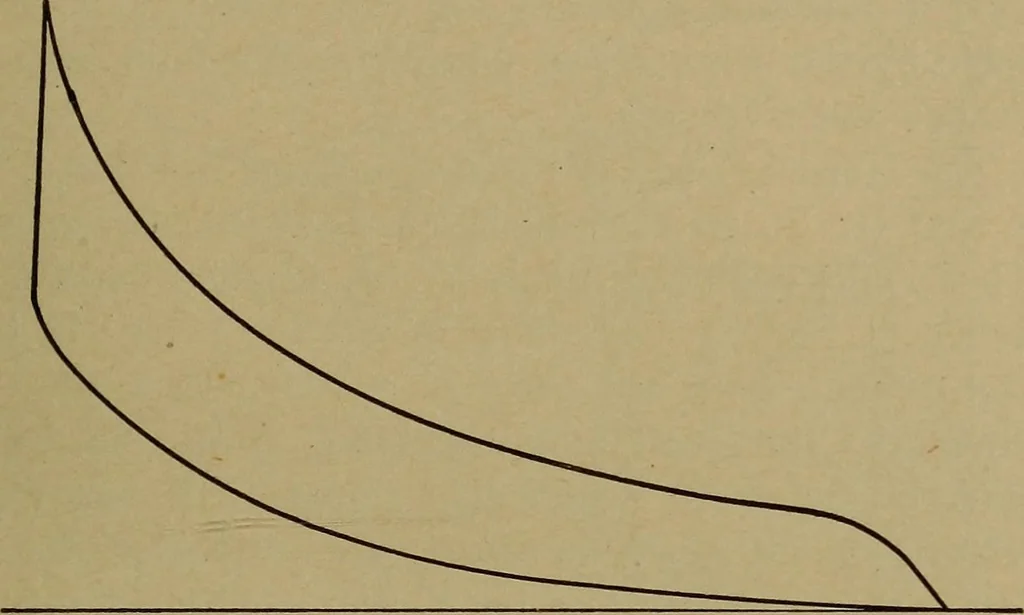

Fig. 75c. (To face p. 180.) VARIOUS ENGINES DESCRIBED. l8l piston travels toward the end of the stroke, this passageis uncovered, and the products of combustionare free to pass to the exhaust-pipe, while the … Indicator diagram taken from the Mietz & Weiss Engine:diameter of cylinder, 12; stroke, 12; revolutions perminute, 300; scale, 100; B. H. P., 20. piston travels to the end of the stroke and the first partof the return stroke until the port is again covered,when the compression period commences…
