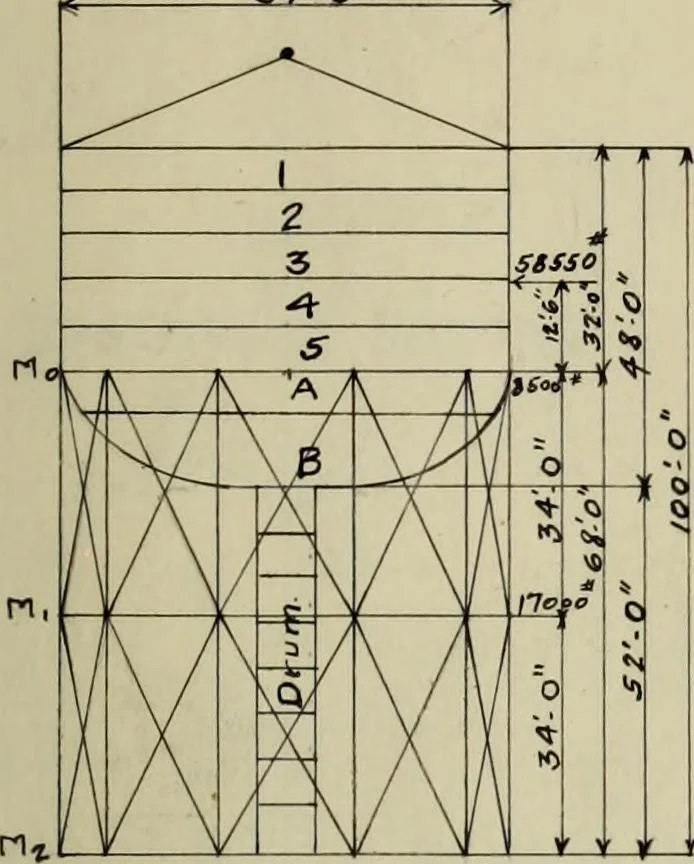

51 B. - Ten-post Elliptical Bottom Tank (Pos.ts Vertical) - Capacity 1,000,000 gallons. Height 68 feet to balcony1. Stresses. <b4-o (a) Center of Gravity on Tank. To determine the center of gravity of thediametrical plane of the tank,takemoments aft out balcony line. Roof 13.3x34.5 ■ 458x35.46 =… … 46100 Bott. 32x64x0.7854 = 805 x<U2xl6= J540O2 Area =3253fKoraent= 40700f# Fig. (ft) Wind Loads. Distance of center of gravity aftoveftalcony line = 4g^00 = 12.50 feet. Assume the wind load on tank at 30#per square foot over 6Cf}l of itsdiametrical plane. Wind load on tank = 3253 x.30 xO.60 =…
