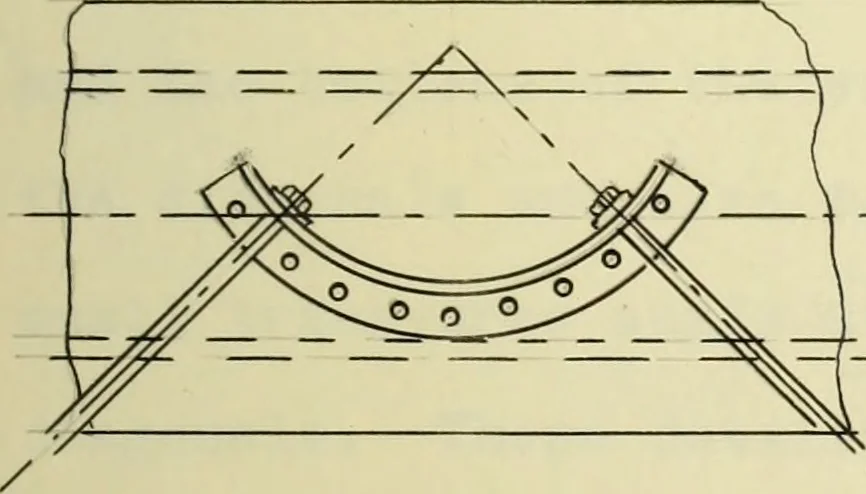

This connection is strong and has an advantage over thePig. 41 preceding in that a cotter pin is not required. The chief objec-tion to this detail is the uneconomical shop expense attached tobending it into its peculiar form. Pig. 42 shows the standard detail oftop lateral connection used by the… … Pig. 42 Also the shop cost of bending an angle into this form makes thedetail uneconomical. »•»•»• BOTTOM LATERAL DIAGONALS AllD COMEDTIONSThe objection to using angles for the bottom lateralsystem of ordinary highway bridges, is the same as that stated in 26 the case of the uj^per laterals. Rods…
