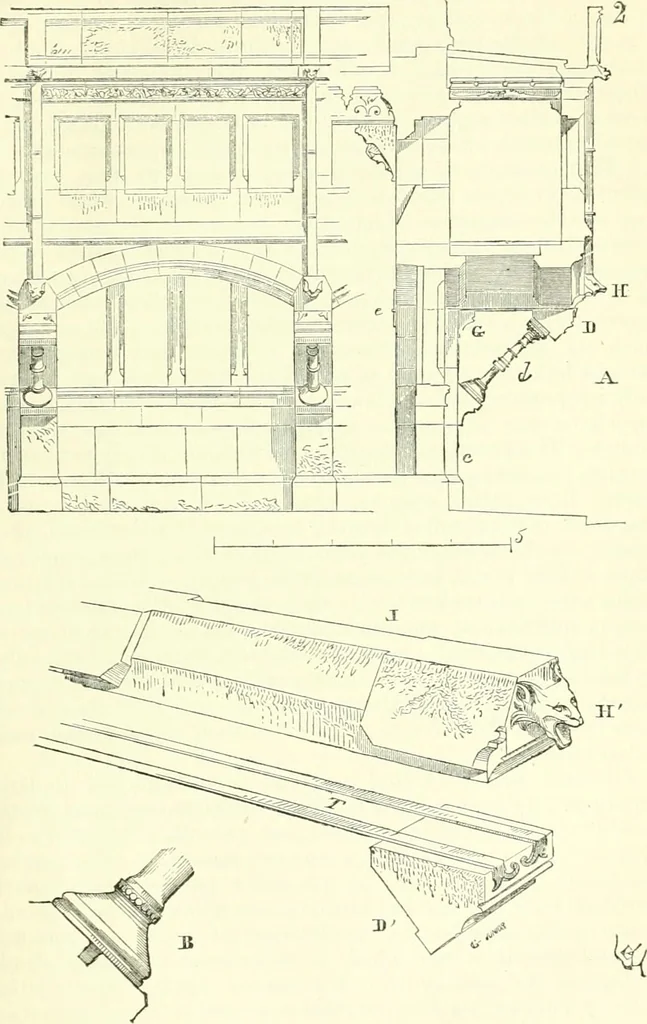

shall have a cast-iron column or sti-utd, set at an angle of 45°, and whose capital, furnished like thebase B with a dowel, will support the stone springer D, shown indetail at d. The overhanging of this column and of its springerwill be kept up by the double tie-bar T, which will be keyedeither at… … FiQ. 2 —Method for supporting a Projecting Gallery on Iron Struts. 58 LECTURES ON ARCHITECTURE. the springer we might proceed as in figure 1. Many improve-ments however could be made on the original structure.Instead of throwing off the water from the terrace by gargoyles,it will be conducted by…
