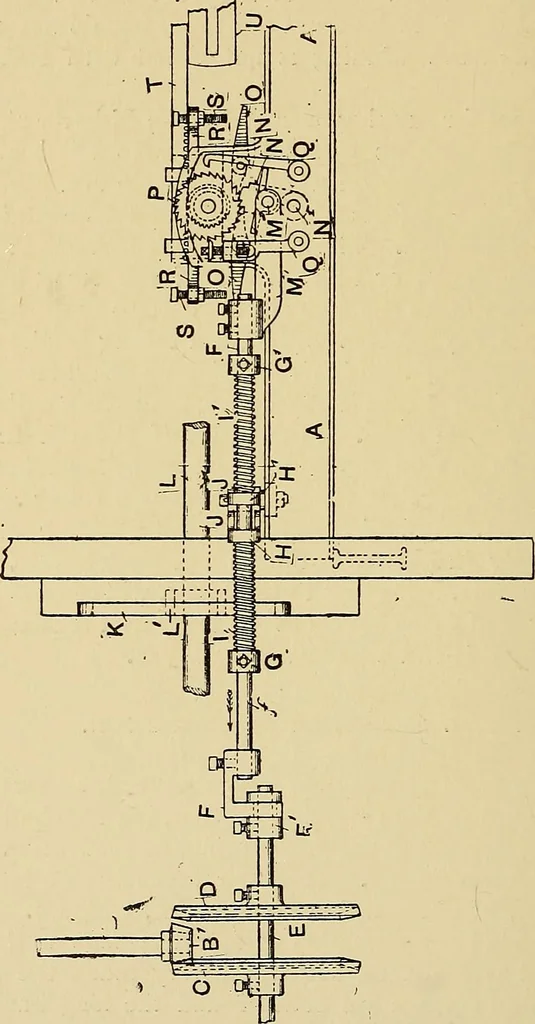

EVERSING ROD. The following improvement shows not only an excellentidea as applied to the reversing motion, but also indicatesthe trend of thought at the present time in connection withfly-frame improvements. It is the invention of Mr. R.Taylor, jun,, of Messrs. Asa Lees & Co., Oldham.… … 6 i65 Fig. 43 clearly shows the improvements under notice.A designates the frame of the machine, B the upright shaftwhich drives the Jack-in-box (not shown), B^ is the smallbevel strike pinion on bottom of upright shaft, CD are thelifter reversing bevels, which are fixed on the sliding shaftE and…
