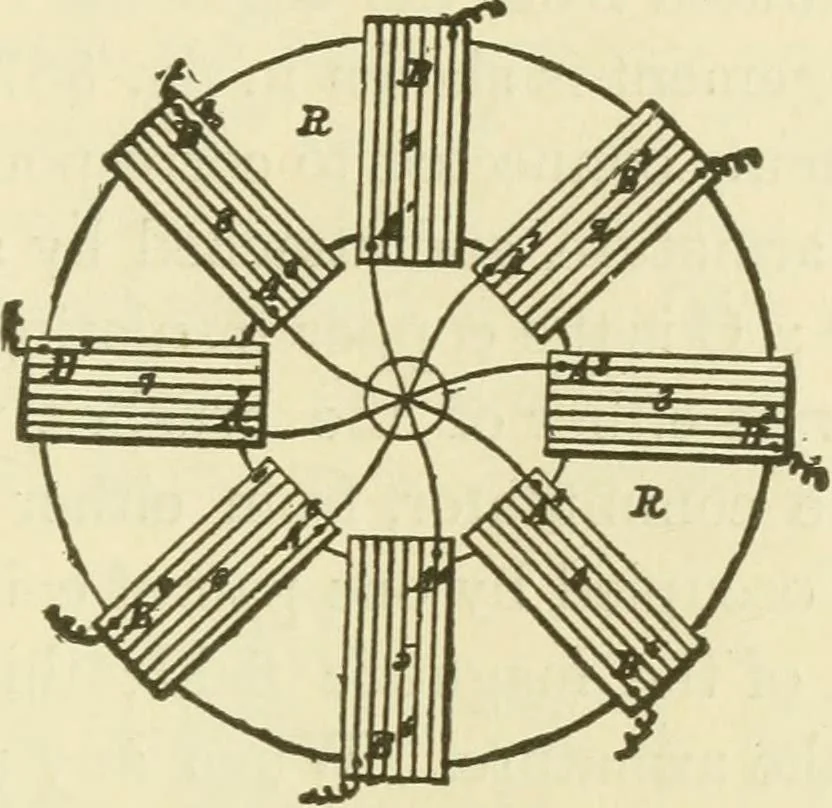

Fig. 385. Y\g. 886 is a diagram showing the distribution of the coilsaronnd the ring. The inner end of each of the coils is connectedbj a wire to the inner end of the corresponding coil, at the brushs constant current machine. 591 opposite end of tlie same diameter of the ring, and the outerends of… … Fig. 386. The inner end, A^, of the coil, is connected to A5, which is theinner end of the coil 5 ; A^ is connected to A^, A^ to A^, and soon round the ring, and the outer ends, B^, etc., are all connectedto the commutator bj insulated conducting wires. The twofree ends of each pair of…
