Dynamo-electricity: its generation, application, transmission, storage and measurement (1884)
Prescott, George B. (George Bartlett), 1830-1894 · New York, D. Appleton · leaf 616

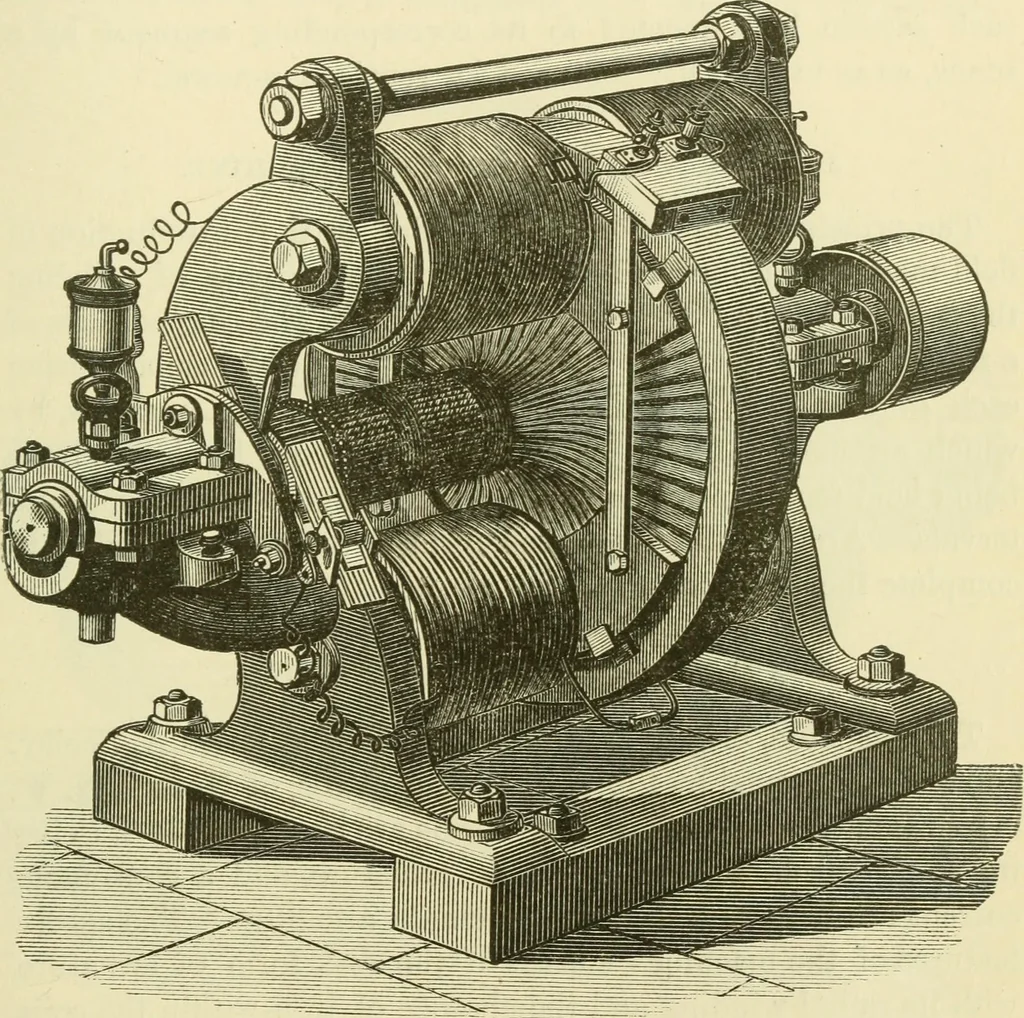

enerator, whichis extensively used in Europe for electric lighting purposes.The machine consists of two vertical frames, between which the schuckerts constant current machine. 595 cores of the field magnets are fixed. These cores are cylindricalexcept at the centre, where they are widened, the… … Fig. 389. insulated from each other and surrounded with copper wire.This ring is nearly enclosed by the semicircular pole pieces ofthe field magnets, which approach each other within a short dis-tance, near the horizontal axis of the ring, the object of thisarrangement being to bring as large a…
