The illustrated architectural, engineering, & mechanical drawing-book : for the use of schools, students, and artisans ; upwards of 300 illustrations (1856)
Burn, Robert Scott · London : Ward and Lock, 158 Fleet Street · leaf 30

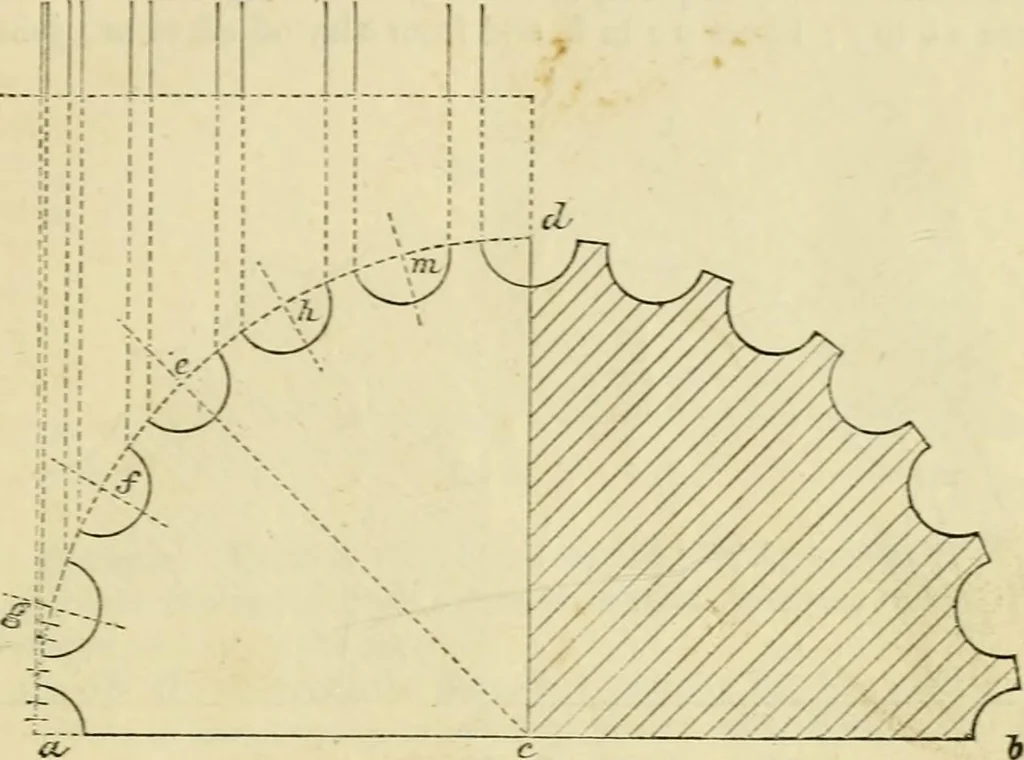

easure to g, and from g, with g h, describe the quadrant h m.From m draw mi parallel to cd: from/, with radius fn, describe the arcmeeting the line i. Finish as in tlie part to the left of the sketch. . Example 3S. To describe thefiutes and fillets in fig. 38. Let a6 be thediameter of column,… … e, and divide the arcs a e, e d, by points g.f, h, m. Mark the position of theseby radial lines from c, as in the copy. Divide the part a g into eight equalparts; and with three of these as radius, from the points in the quadrant,as g.f, &c., describe semicircles. Six parts will thus be given…
Architectural drawing · Mechanical drawing
