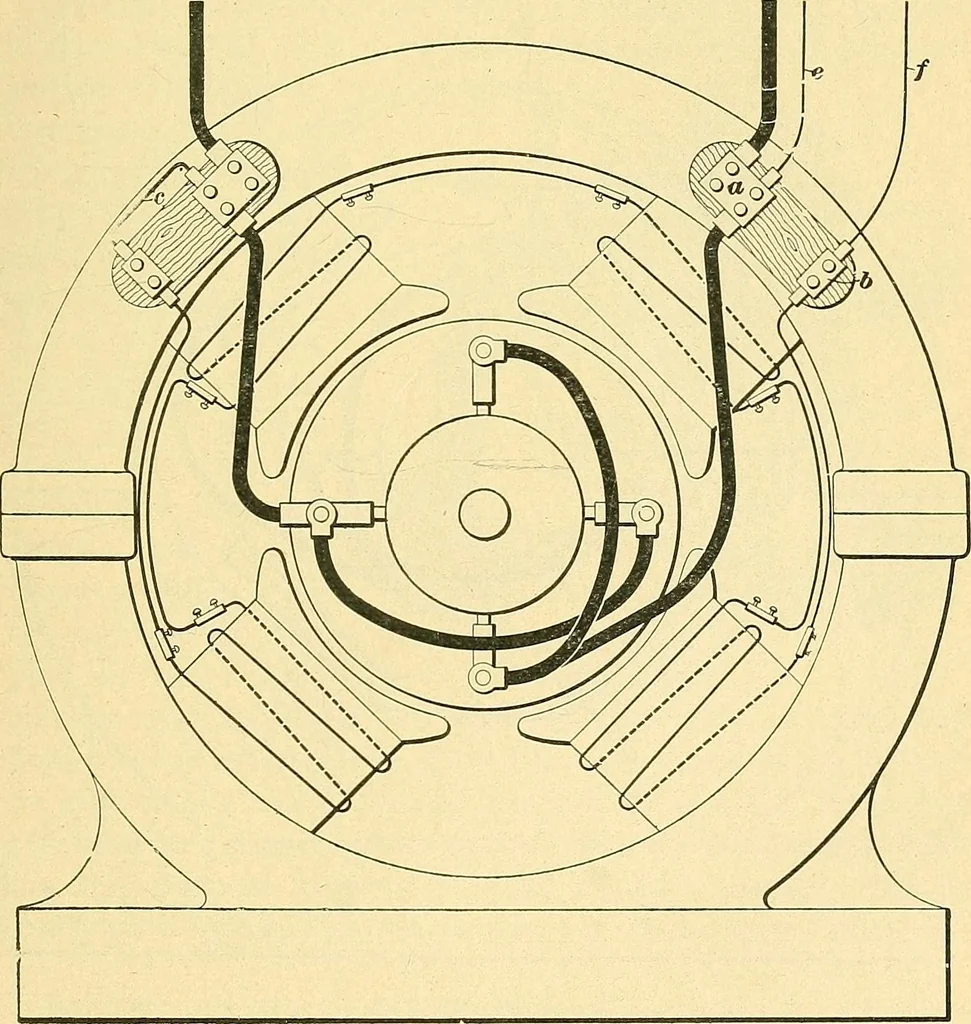

y be used—one from either side. DYNAMO-ELECTRIC MACHINE DESIGN. 2513 3771. For a compound-wound dynamo, the connectionsof the series coils to each other are made with cast-brassclamps, Hke that shown in Fig. 1403. These should be thickenough to stand the pressure of the bolt without bendingback, so… … Fig. 1404. M. E. JV.—27 2514 DYNAMO-ELECTRIC MACHINE DESIGN. terminals, as described in the preceding pages. Theright-hand board has two blocks: one, that at «, beingsimilar to Fig. 1399, and the other, lettered b, like Fig1402. On the other terminal board are similar blocks.A permanent connection…
