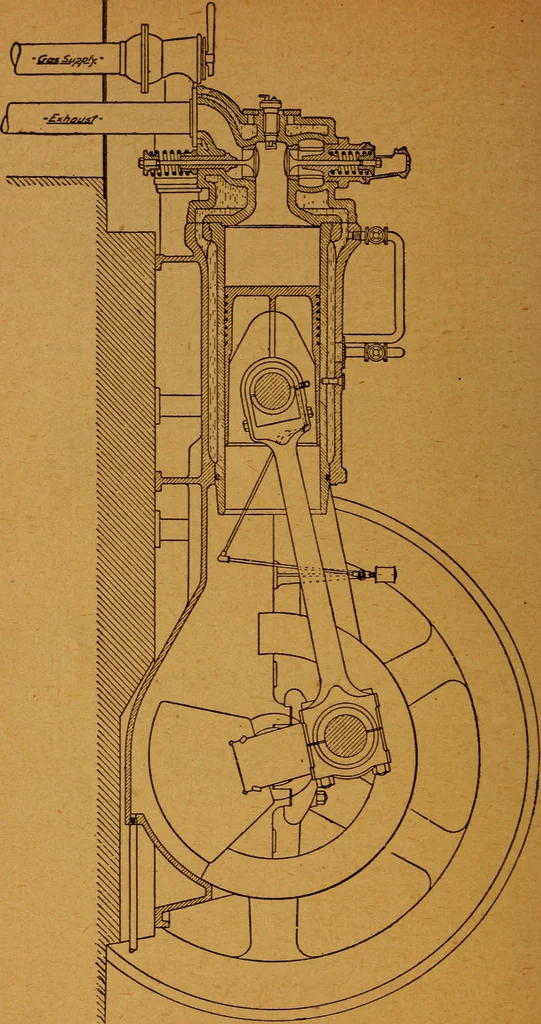

hich keeps the cylinder wallsfrom becoming overheated by the successive explosions of themixture. The cooling water is pumped into the jacket throughthe pipe shown over the cylinder, and flows out of the jacketthrough an outlet near the bottom of the cylinder. Both the inlet and exhaust valves are… … Fig. 17. Longitudinal Section Through the Muenzel Horizontal Engine. GAS, OIL AND STEAM ENGINES 93 springs that act on the upper ends of the valve springs. Admis-sion of the explosive mixture is controlled by the upper valve,and the release of the burnt gases by the lower. Pipes at thebottom of the…
