An illustration from Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery, 1922, leaf 833

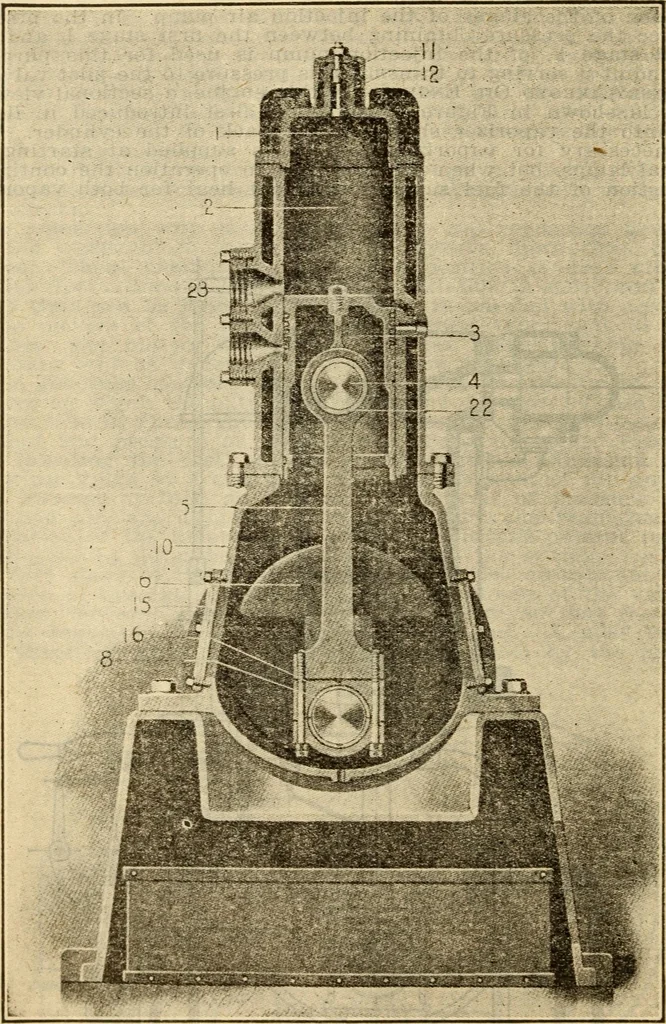

FIG. 5 Hornsby-Akroyd vertical engine. 810/ Steam Engineering … 13 Oil spraying nozzle. 14 Control lever. 15 Hand hole cover. 16 Crankpin brasses. 17 Flywheel. 18 Governor weight. 19 Cam. FIG. 6 Names of Parts. 20 Stud carryine* governor weight. 21 Crankcase end plate. 22 Wrist pin bushing. 23 Exhaust pipe flange. 24 Speed control segment. 25 Bracket carrying…
