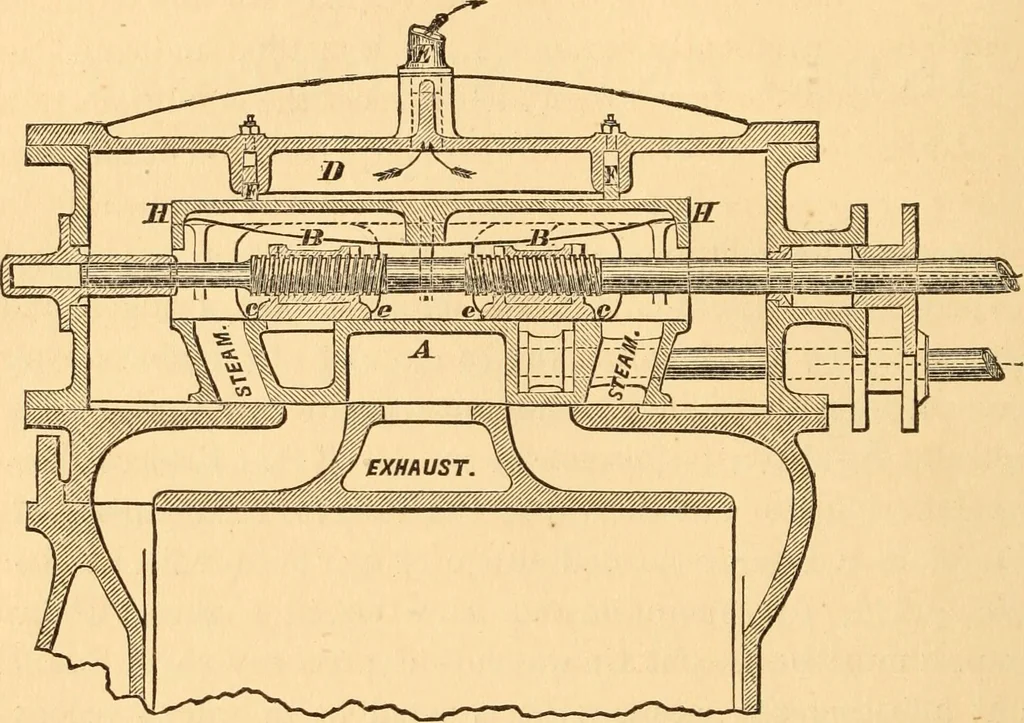

e im-mense pressure exerted by the steam, and consequentlyreduces the friction as well as facilitates the starting of theengine. On the cut-off valve stem are turned a right and lefthand thread, so that by revolving the same, the valves maybe drawn closer together or separated by a wider distance… … these quantities throughout every variation in the point ofcut-off brought about by the separation of the valves B B.Its general design depends upon the range of the cut-off.For one varying between zero and about 0.6 of the stroke thecombination shown in Fig. 48 is most suitable, where theouter…
