Elements of mechanical drawing (1893)
Sullivan, Christine [Gordon]. [from old catalog] · New York, Cincinnati [etc.] American book company · leaf 49

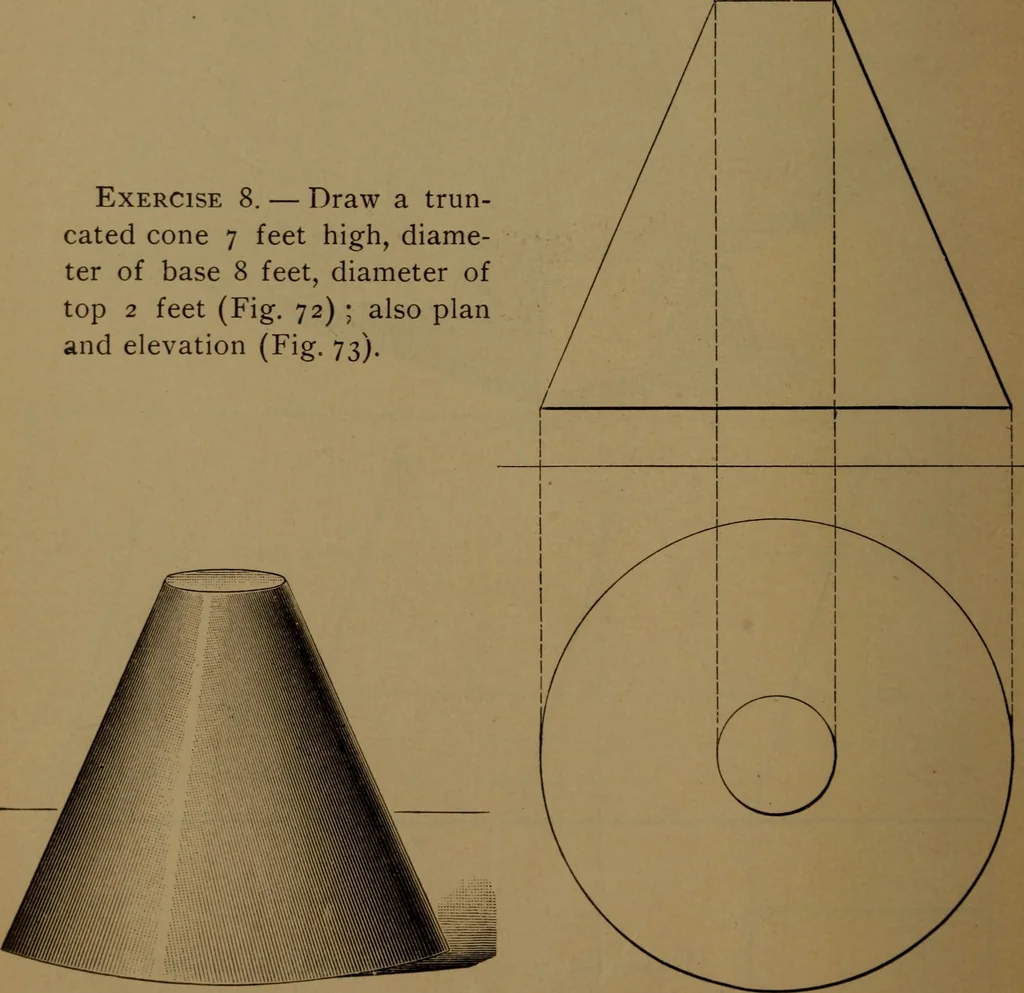

Exercise 7. — Draw a pyramid 8 feet high,having a base 5 feet square (Fig. 70) ; also planand elevations (Fig. 71). 44 ELEMENTS OF MECHANICAL DRA WING. Exercise 8. — Draw a trun-cated cone 7 feet high, diame-ter of base 8 feet, diameter oftop 2 feet (Fig. 72) ; also planand elevation (Fig. 73). … Fig. 72. Fig. 73. GEOMETRIC SOLIDS.—PLANS AND ELEVATIONS, 45 Exercise 9. — Draw a hollow cylinder 7feet high, diameter 4^ feet, diameter of open-ing 2\ feet (Fig. 74) ; also plan and elevation(Fig. 75).Mechanical drawing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
