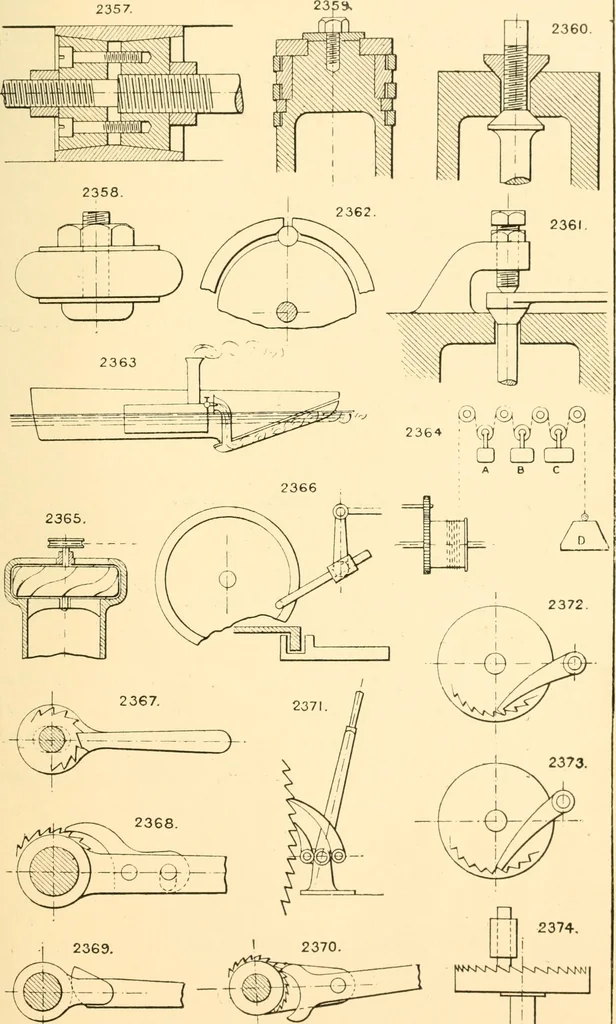

)awl. The handle is hinged to the socketarm, and has a tooth gearing with the ratchet, and thrown in andout by the movement of the handle. 2371. Double-acting pawls and lever. 2372. Internal hooked pawl. 2373. Internal strut-action pawl. 2374. Gravity pawl and crown ratchet. TEE ENGINEERS… … .^S- 502 THE EISGIISEERS SKETCH-BOOK. 2375. Ratchet rack, crank and connecting rod, intermittent movement, —a detent may be added to return the rack. 2376. Internal spring pawls for a ratchet brace. 2377. Recking escapement. 2378. Ditto ditto 2379 to 2384. Forms of locked intermittent movements.…
