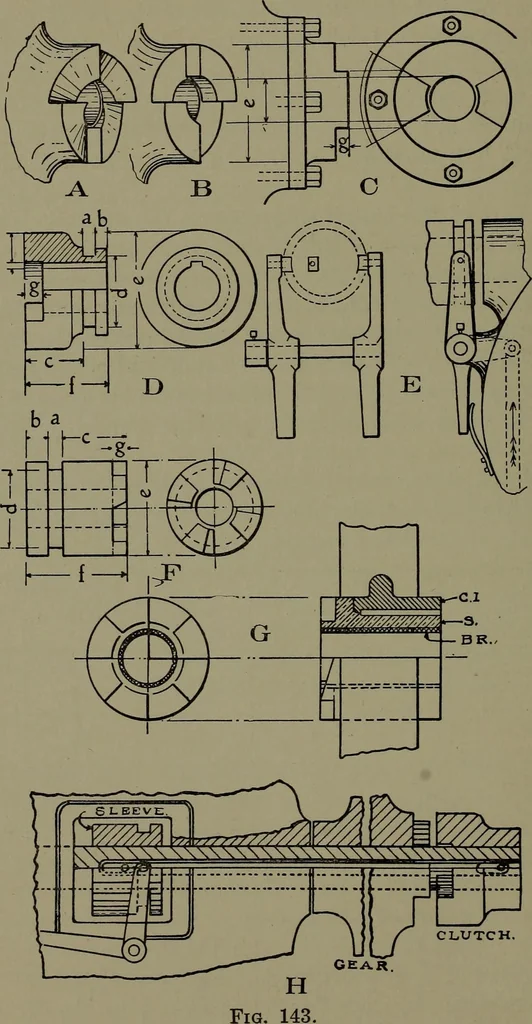

is should be from | in.to i in. The clutch sleeve may be shaped as shown in either D or F.The following sizes, table LIX will meet average requirements. TABLE LIX Shaft = 2 in. 3 in. 4 in. 5 in. 6 in. a 1 1 U n If b 1 1 U n If c = / — (a + b) d 4 5i 7 9 m e 5 7 9 11 12 f 3 4 5i 7 8 g 1 1 u If n 282… … CLVTCH. PUNCH AND SHEAR DETAILS 283 the clutch and the frame. The latter method necessitates ahollow shaft in order to obtain a rigid connection between thesleeve and the clutch and is not much used on small machines. 155. Punch, Die, and Holders.—In all punch and die work thedie is made a little…
