Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 182

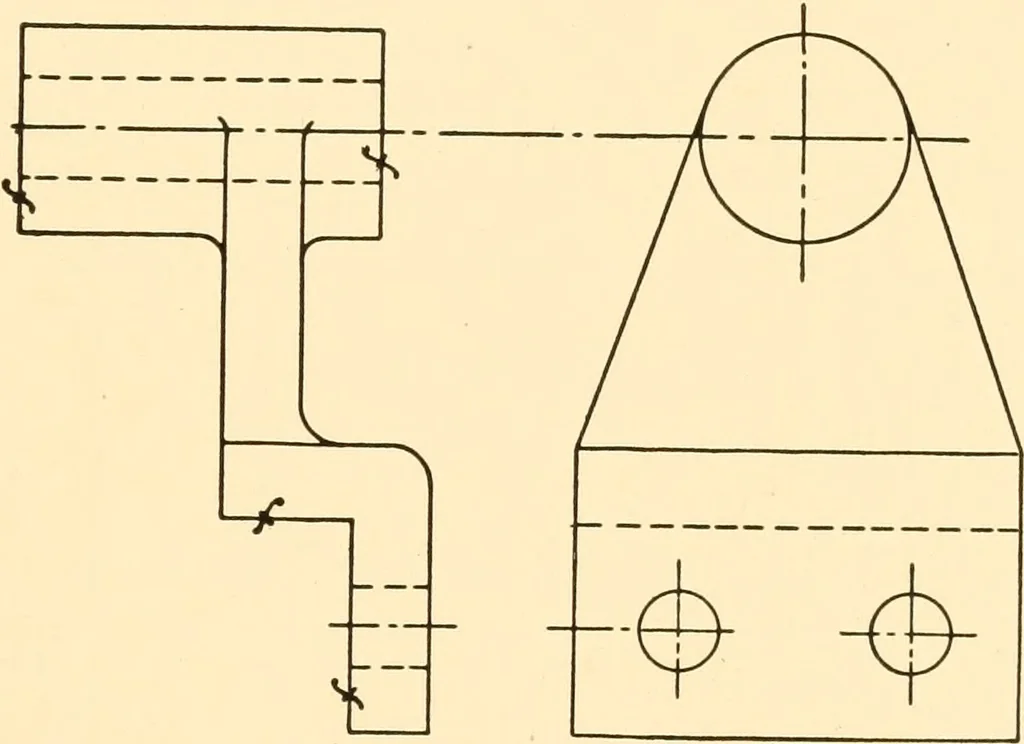

rig. a/1 … Ss V s ^. -f- ■^ \ 167. Make an assem- ^ ^bly working drawingfrom the details of the connecting rod shown ^^ ^ in Fig. 419. Draw one view in full and the Fig.^^is other half in section and half full. Choose a suitable scale. If necessary a portion of the rod may be broken out. Supply required bolts…
Mechanical drawing
