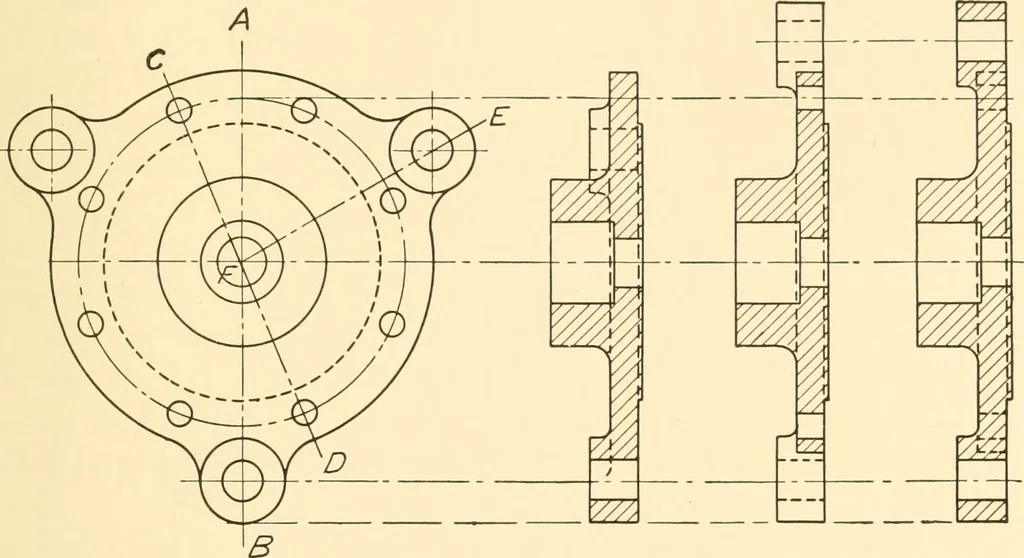

arms, etc., which are very seldom drawn in section except whenthe cutting plane is at right angles to the long dimension. Thistreatment of a section is shown in Fig. 176. SECTIONS 75 Dotted Lines on Sectional Views. — Very often a sectionalview contains only the outline of the sectioned surfaces… … Fig. 179 Fig. 160 Fig. /&/ of the section should be represented must be determined for eachparticular case. When an object is represented by a view madeup of one half in section and one half exterior most or all of the
