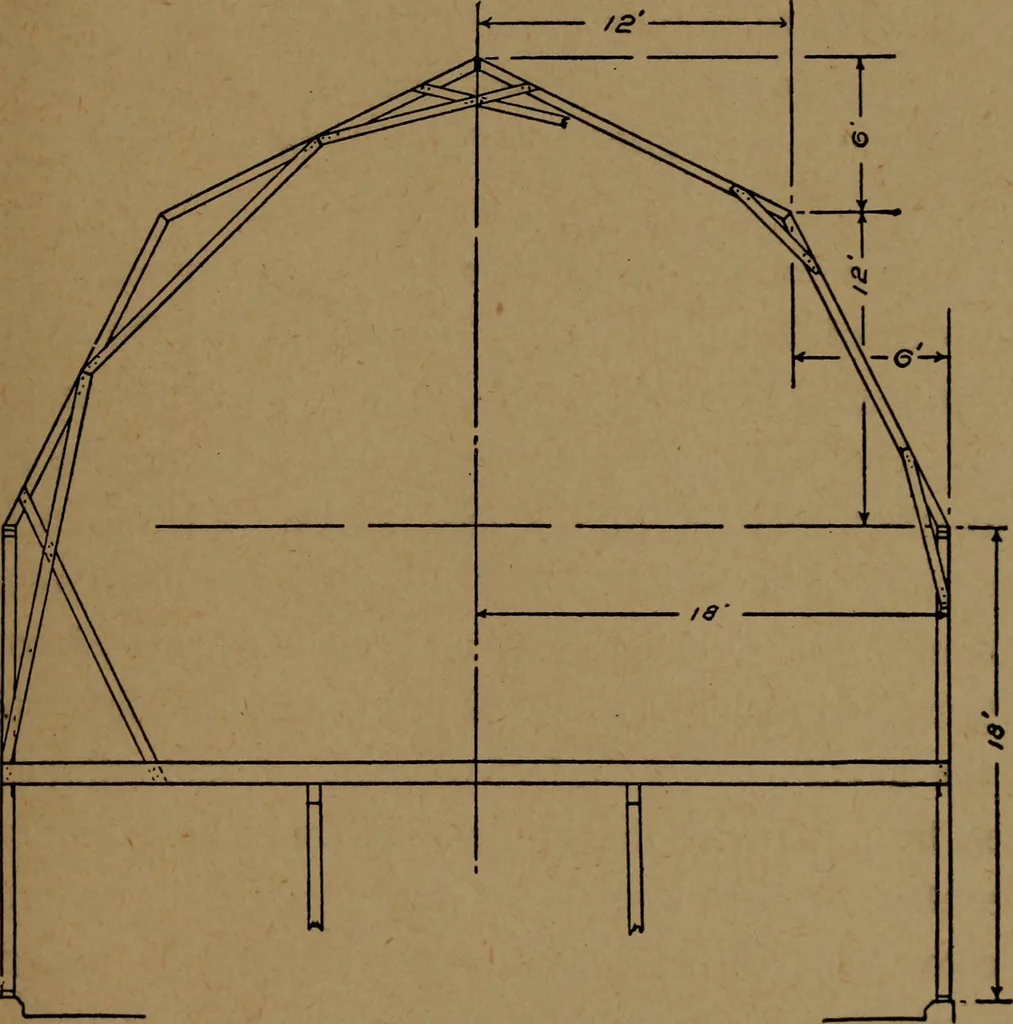

utseasy to work out. The sketch is for a 36 barn. Thestudding, rafters, and braces forming the bent are all2 X 6s. There are two kinds of framing, one on each sideof the center line. The bent shown on the left side is put in OUTLINE FOR A SHORT COURSE IN DRAWING 31 every fifth or sixth rafter, and… … Figure 19. can be hung from the intersection of the scissors truss, ifdesired, or a 2 X 6 collar tie can be used at the same,level as the intersection just mentioned. The lower 2 X6^ brace, that projects out into the loft at the bottom, is notalways used, as it cuts up the loft to a certain extent.…
