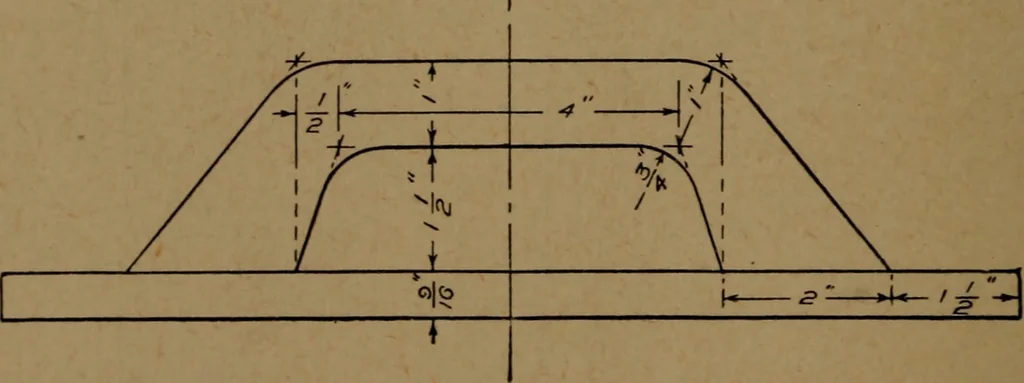

one can be completed.By following this method the point at the upper right-hand corner will not be lost, and the work can be moreaccurately done. Ink-in the outside of the squares afterall the other work is completed. Hand in this exercise on 46 ESSENTIALS IN MECHANICAL DRAWING a sheet 6 X 8… … Figure 27. drawing paper to within V of the border line. Put titleat top. Exercise 4. — Mechanical drawing of blacking stand(Fig. 15). Show side view of stand open and end view.Follow the general directions given in Exercise 6 on page24. Use a border line 11 X 15. Print out table ofmaterial…
