Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 221

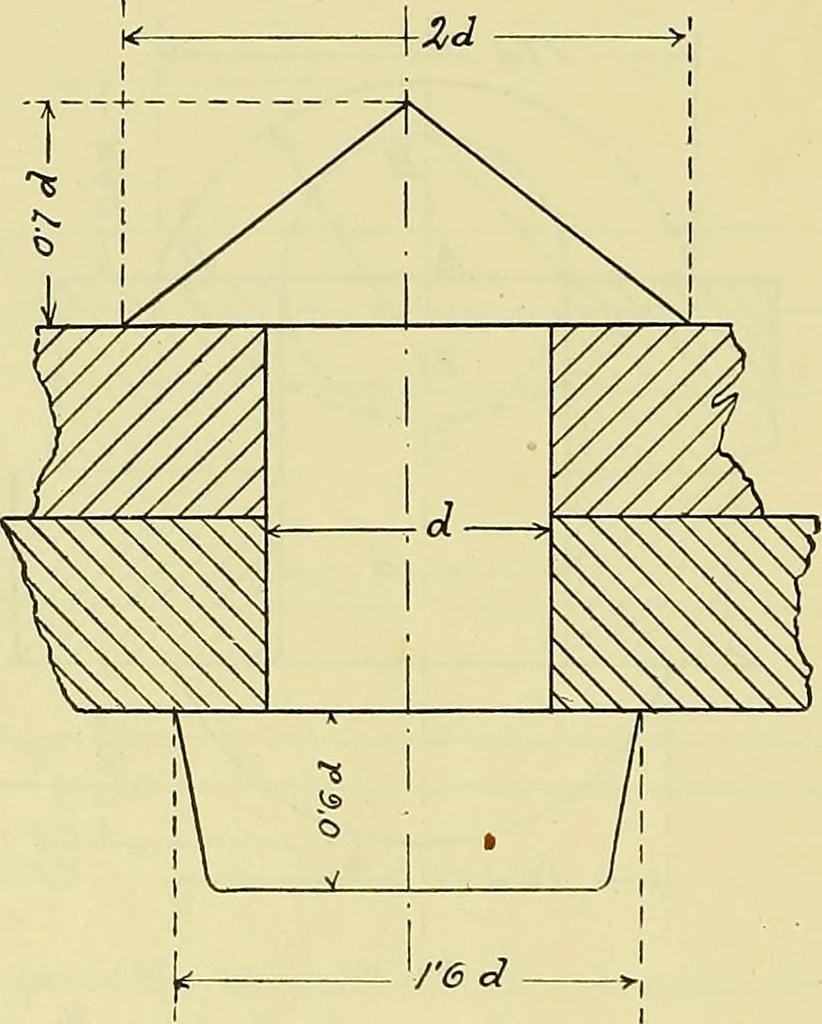

Fig. 361. Rivets are made in different forms; that mostcommonly employed being of a spherical or cup headform, as illustrated in Fig. 361 ; both parts of thisrivet show the spherical head. 244 ROGERS DRAWING AND DESIGN. The rivet shown in Fig. 362 has a conical head,the lower part showing a pan… … Fig. 382. Fig. 363 shows a rivet with countersunk heads.The usual proportions of this kind of rivet are marked on the figure. In all the above illustrations the diameter of therivet is taken as the unit of all proportions. The construction of the spherical head, Fig. 361,is as follows :
Mechanical drawing · Machine design
