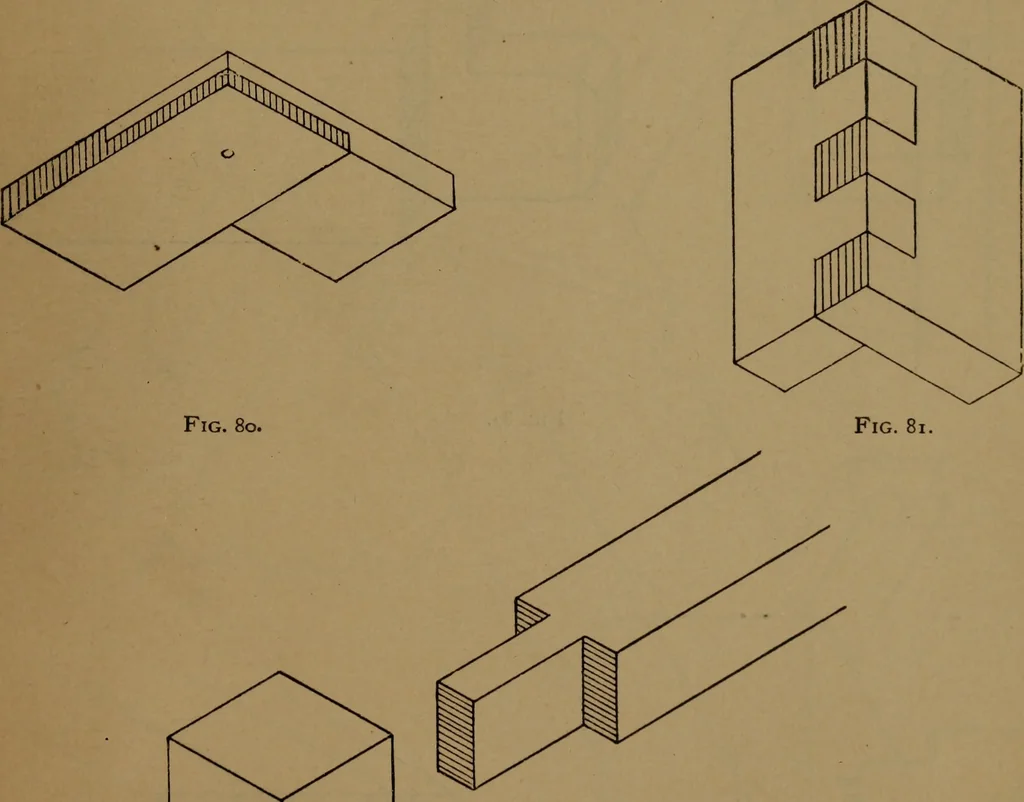

Fig. 79. Exercise it. — Draw a cubical box 6 feet each way, opening 3^feet (Fig. 79) ; also plan and elevations (Fig. 78). JOINTS. Al LESSON XVIII. JOINTS.EXERCISES FOR PRACTICE. Exercise i.— Draw a corner joint (Fig. 80). Exercise 2. — Draw a notched joint (Fig. 81). Exercises 3, 4, and 5. — Draw… … Fig. 82. 48 ELEMENTS OF MECHANICAL DRA WING, Exercise 6. — Draw a joist and flooring (Fig. 85).Exercise 7. — Draw a beam and stirrup (Fig. ^6^. Note. — The pupil will make sketches of the following, tongue and groove anddovetail, from objects, not from drawings, and make working drawings of the…
