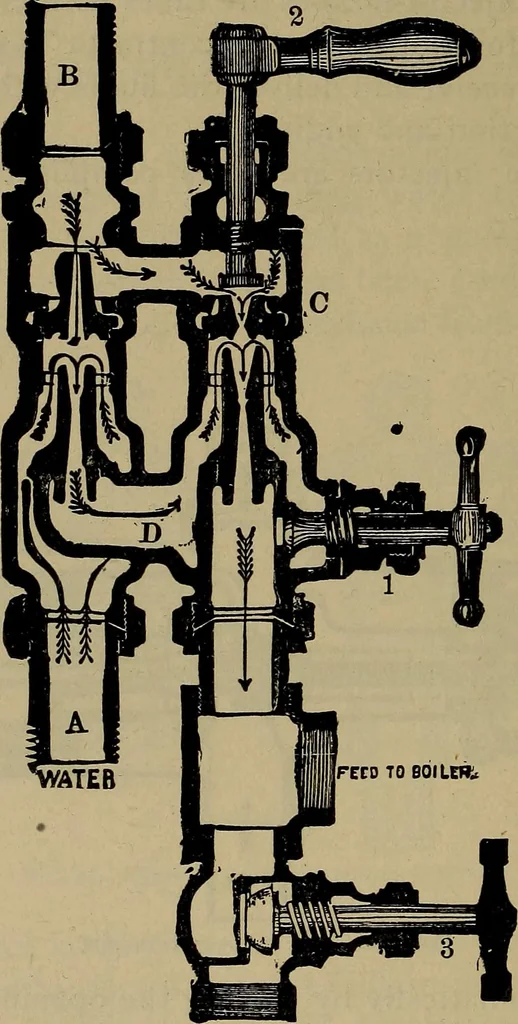

ning-chamber NN. Theoverflow P is closed by a valve K operated by a rod L con-nected to the starting-lever T. The tube NNCO moves 6io EXPERIMENTAL ENGINEERING, [§440. automatically to vary the opening at C with change of steam-pressure. In some of the injectors the tubes are so arranged that… … OVERFLOW.Fig. 243.—The Hancock Inspirator.. 440. Thermodynamic Theory of the Steam-injector.— As a thermodynamic machine the injector is nearly perfect,since all the heat received by it is returned to the boiler, ex- §440-] THE STEAM-INJECTOR—THE PULSOMETER. Oil cepting a very small part that is…
