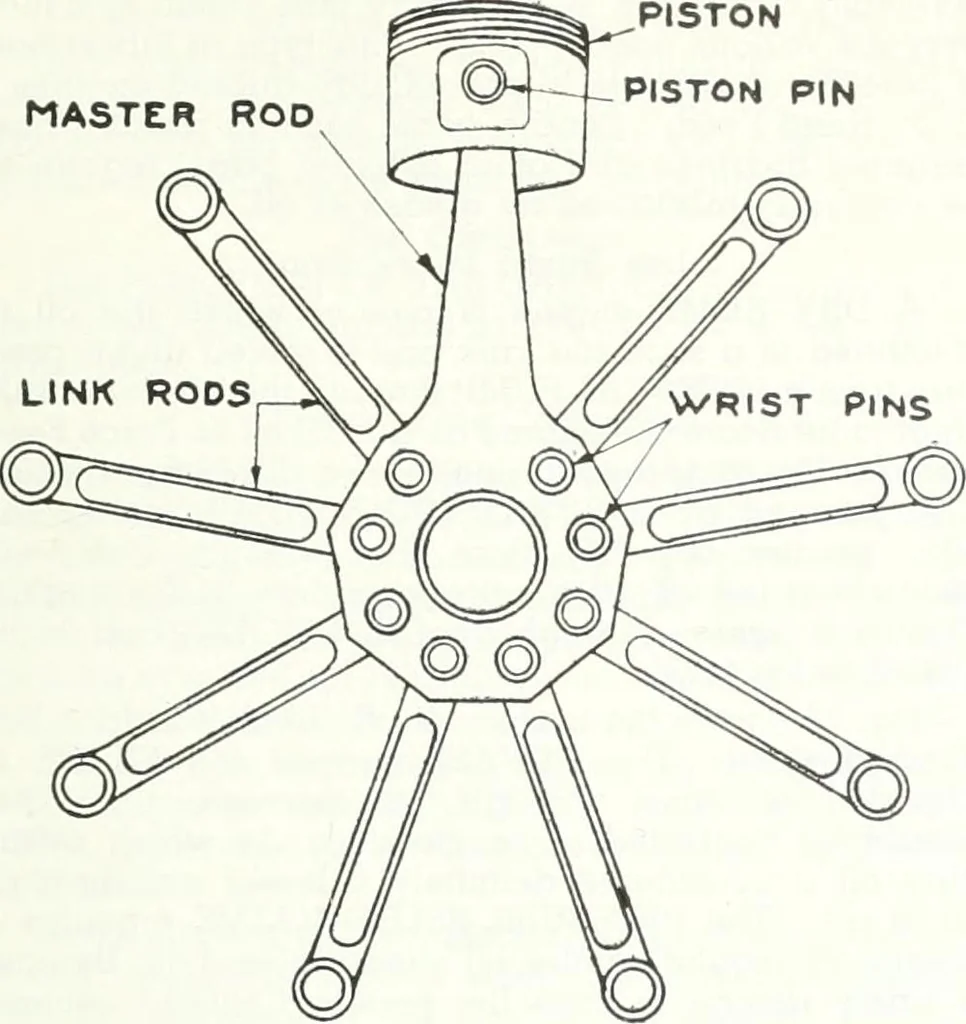

Fig. 12. Connecting Rods. There are two classes of reduction gears. SPURtype gears are generally used in In-Line Engines.PLANETARY gears are usual on Radial Engines, where Aero Engines 115 (he propeller shaft is required to be on the scone centreline as the crankshaft. PISTON MASTER ROD ©4—-PISTON… … Fig. 1}. Radial Connecting Rod Assembly. Auxiliary Drives. The crankshaft drives the propeller. It is also madeto drive various AUXILIARY GEARS which in turndrive oil pumps, magnetos, generators, dynamos, aircompressors, and other essential auxiliaries. The auxiliary gears are generally grouped in…Airplanes
