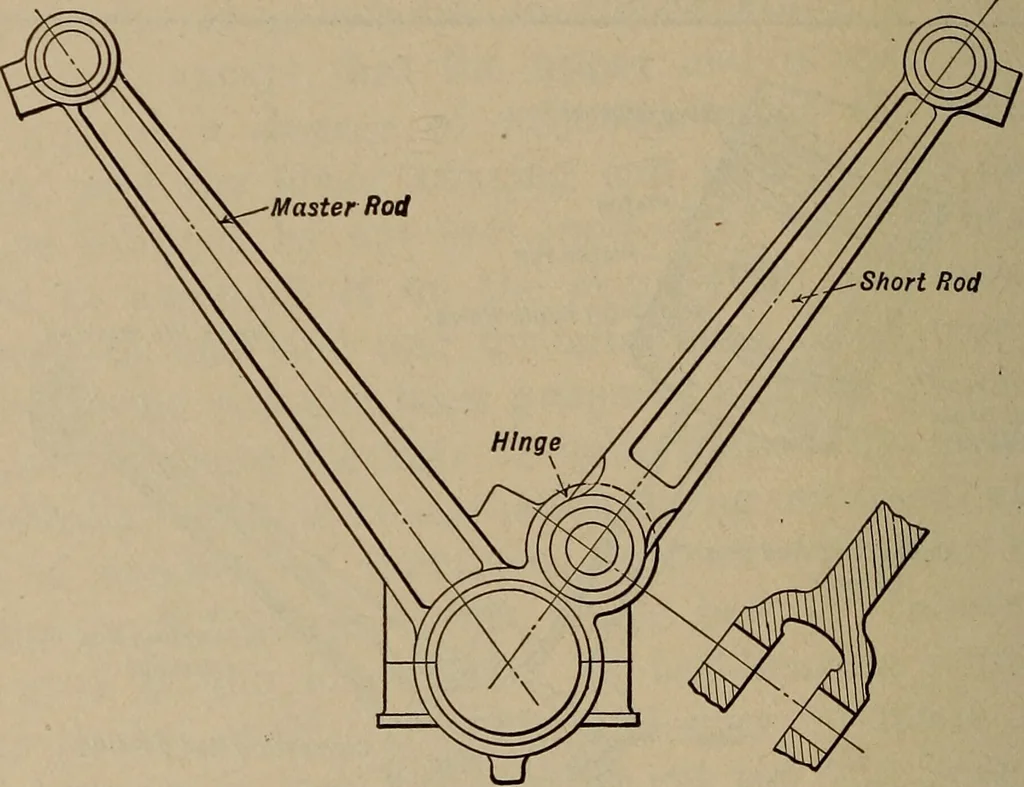

st member as in some marine en-gines, the cross, hollow cylinder, or U sections are some-times used. If the sections shown at the right are em- 310 Aviation Engines ployed, advantage is often taken of the opportunity forpassing lubricant through the center of the hollow roundsection on vertical… … Fig. 130.—Another Type of Double Connecting Rod for Vee Engines. is employed when the cylinders are placed directly op-posite each other. The blade rod, as shown at Fig.129, fits between the lower ends of the forked rod, whichoscillate on the bearing which encircles the crank-pin.The lower end of…
