The modern gas tractor, its construction, utility, operation and repair; a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction of all parts, their installation and adjustment as well as practical application of tractors in the field (1914)
Pagé, Victor Wilfred, 1885-1947 · New York : Norman W. Henley · leaf 270

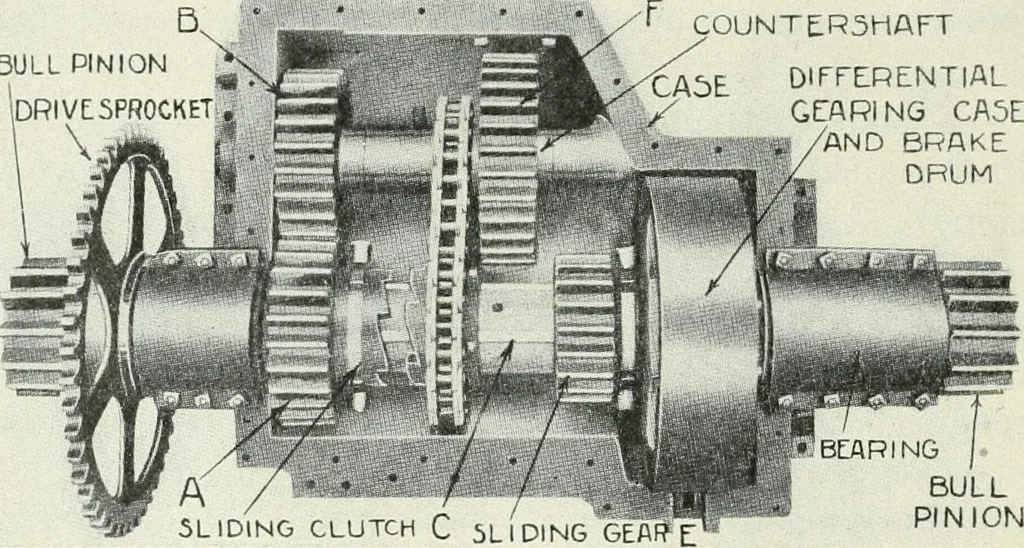

pass through it. Withthe sliding clutch D in the position indicated the splineddifferential drive shaft C is locked firmly to the drivinggear A, and the drive is direct from the engine to thedifferential casing. The only reduction of speed ob-tained is because of the varying diameter of the… … Fief. 107.—View of Transmission and Differential Unit WithCover Removed. on the differential case drive shaft, which normallyrevolves free upon it, is clutched to that member then areverse motion will be obtained. The drive from theengine is to the drive sprocket of the transmission gear-ing, which…
Farm engines · Internal combustion engines
