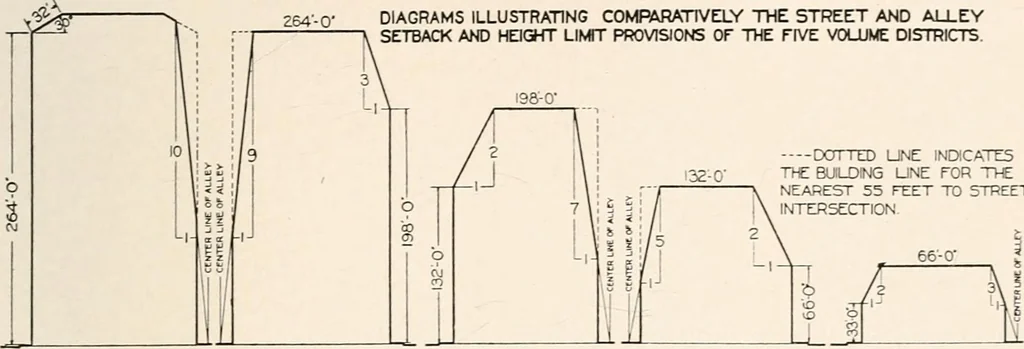

the ordinary projectionsof window sills, belt courses, if such pro-jections do not exceed 6 inches, shall not bedeemed to reduce the area or volume of openspaces. Cornices or similar ornamental fea-tures projecting not over 4 feet into courts,which open on a street or alley shall not bedeemed to… … DIAGRAMS ILLUSTRATING C0MR4RATIVa.Y THE STREET AND ALLEYSETBACK AND HEISfT LIMIT PROVISIONS OF THE FIVE VOLUME DISTRICTS. DOTTED UNE INDICATES THE BUILDING UNE FOR THENEAREST 55 FEET TO STREETINTERSECTION ■=^- \/n I WE DI<=TraCT ^S^ VOLUME DISTRICT 3S VOLUME DISTRICT 2« VOLUME DISTRICT isr…
