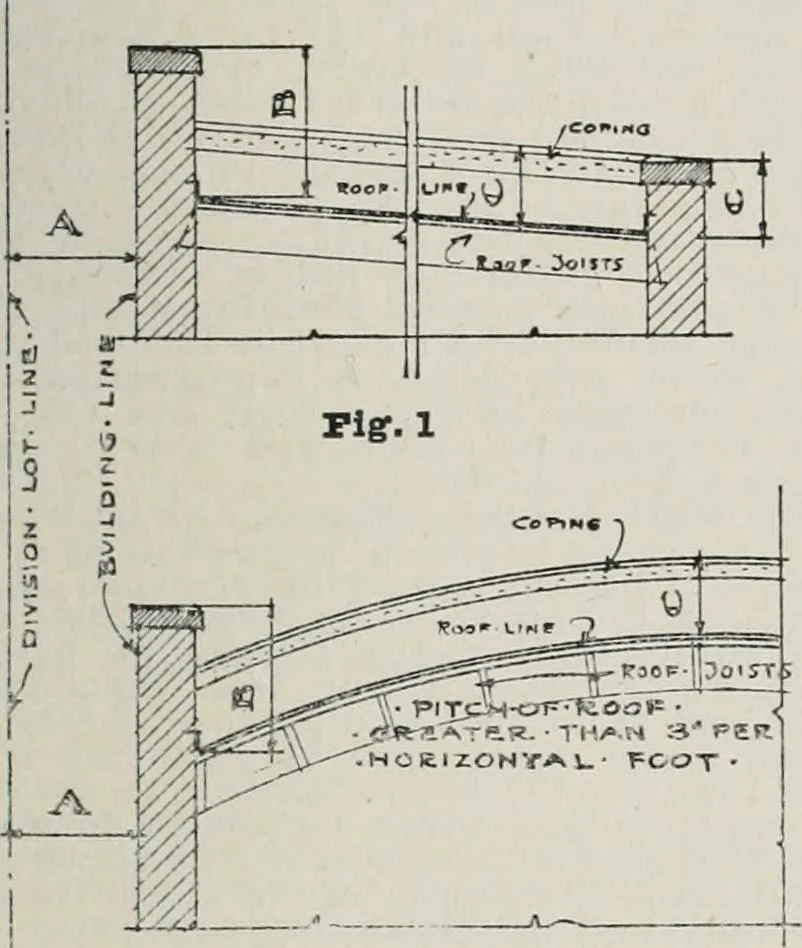

feet above the roof; and pro-vided further that a parapet wall at a gableend of a medium pitched or steep roof neednot extend more than one (1) foot above theroof. Parapets shall not be required for anyexterior wall which is covered by a roof sur-faced with two (2) inches of slate, clay tileor not… … Pig. 2 SECTION 2110.01 d.Fig. No. 1. A—distance from division lot line to building line. B—height of parapet wall above roof on division lotline side. C—parapet wall on other sides when required.Explanation: If A is 30 or more, B shall be 20. If A is less than 30, B shall be 30. C shall be not less…
