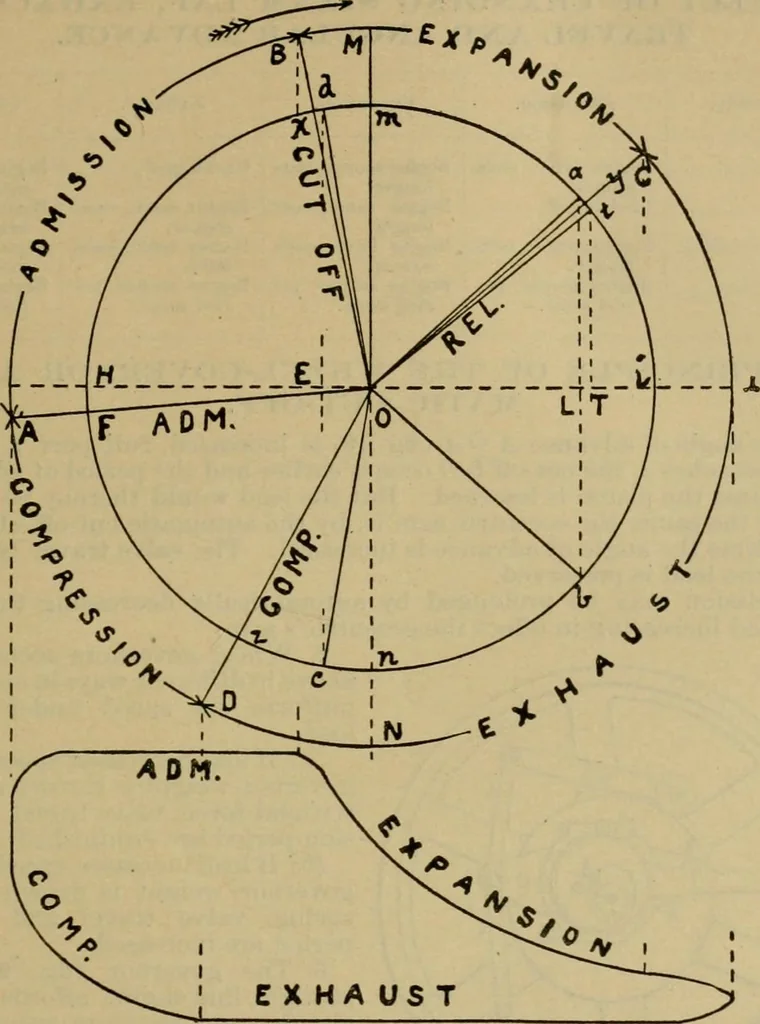

\- 90° + at, or, since arc d 11= 90° — d in, lay offfrom Hthe difference (m a -\- a t -\- d m) to get z. D o d are the crank andeccentric positions at compression. Therefore the crank is— At admission, the lead angle distant from first dead center. At cut-off, two steam lap angles + lead angle from… … 19. Four Critical Positions of Crank and Eccentric Arm. (F) TO EQUAIiIZE THE FORWARD AND RETURN STROKES OF THE PISTON. The foregoing would only be true for very long connecting rods. The angularposition of an actual rod (about six times longer than the crank) delays theevents on the stroke from the…
