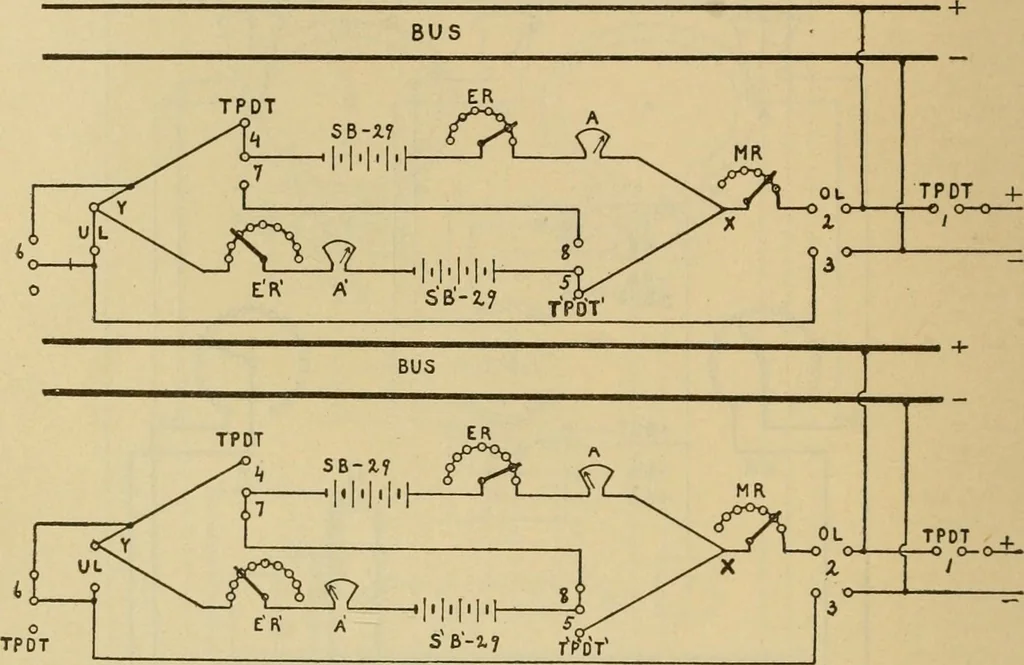

■h|.|.[.|.|.H ... 80. Engineer Battery Panel. 60 HANDBOOK FOR ELECTRICIANS. like it, in rear, but drawn on the left in order to be seen. When a current passesthrough the coil, it revolves on its pivots on the same principle as the armatiueof a motor and carrying with it the pointer along the scale.… … 81 and 82. Diag:rammatic Sketch of Engineer Switchboard Battery Panel. (5) The Weston ammeter ^4 is similarly constructed, but has fewer turns ofcoarser wire in the coil, which carries a very small but a fixed fraction of the maincurrent through the shunt A S of German-silver strips in the main…
