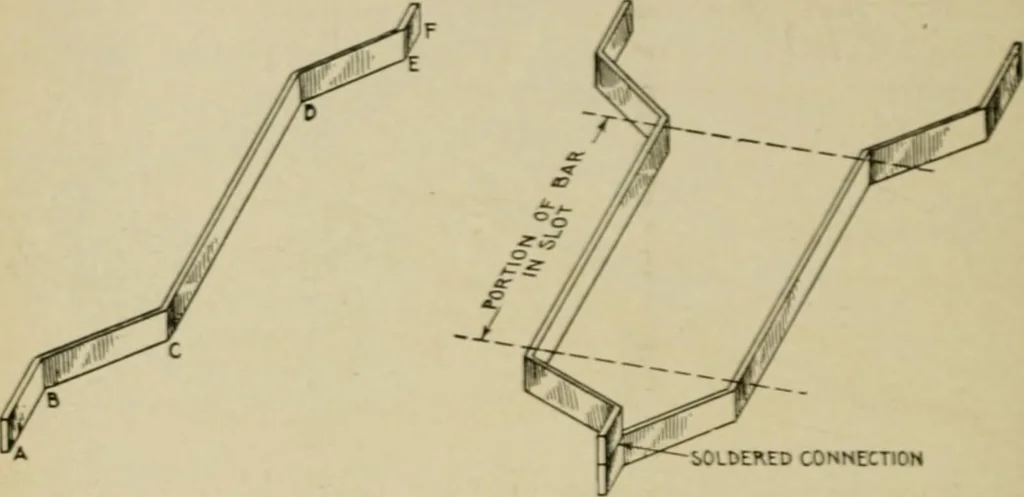

with bar wound machines. This con-struction, since there are no indentations in the teeth for wedges, makes it necessary toprovide bands to hold the bars in place. Ques. How are bar windings sometimes arranged? Ans. In two layers, as in fig. 1,523. - HAWKINS ELECTRICITY Single and Multi-Slot… … iC LDEKEC 30NNBC1 DM Figs. 1.519 and 1.520.—Bent bar inductor and method of connection with solden Ihows one bar and shape of ber l portion from C to D is placed slot; B to C and D to I A to B and E to F, ends bent parallel to slot for soldering. Fig. 1.520 shows two bar inductors connected.
